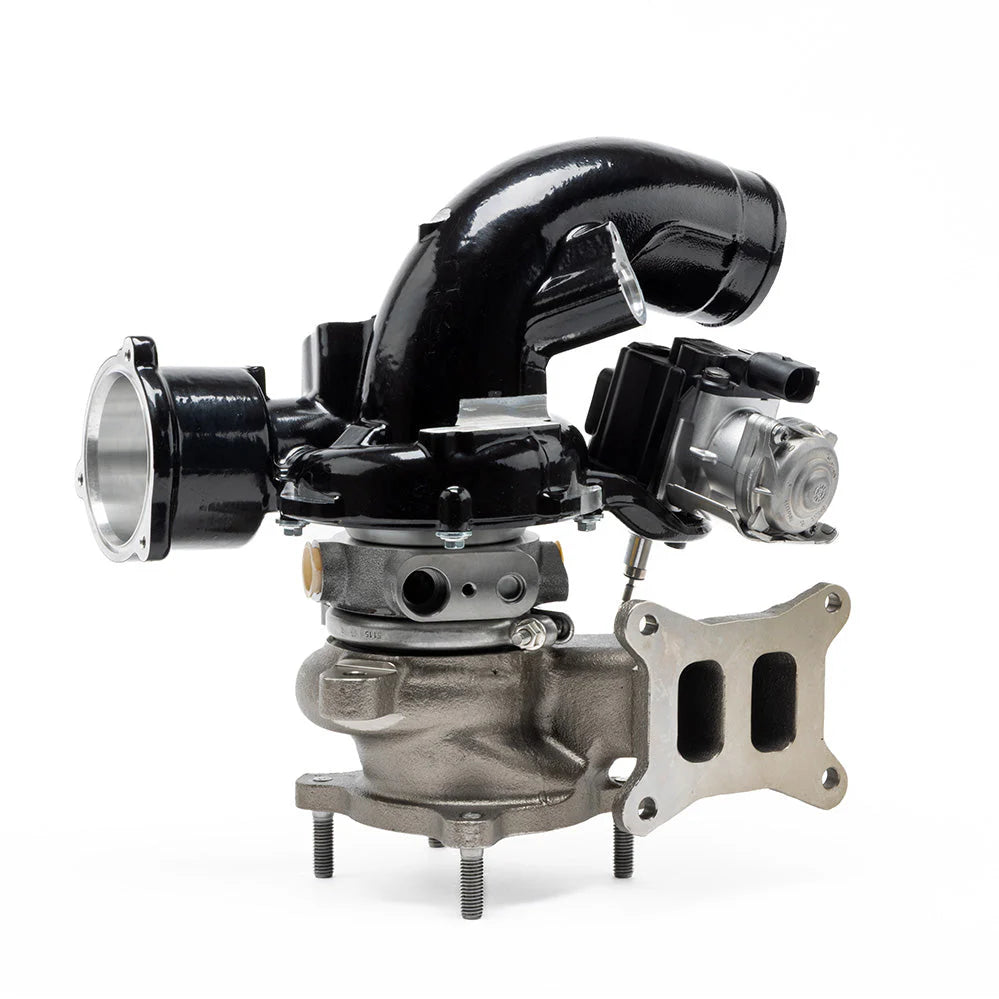

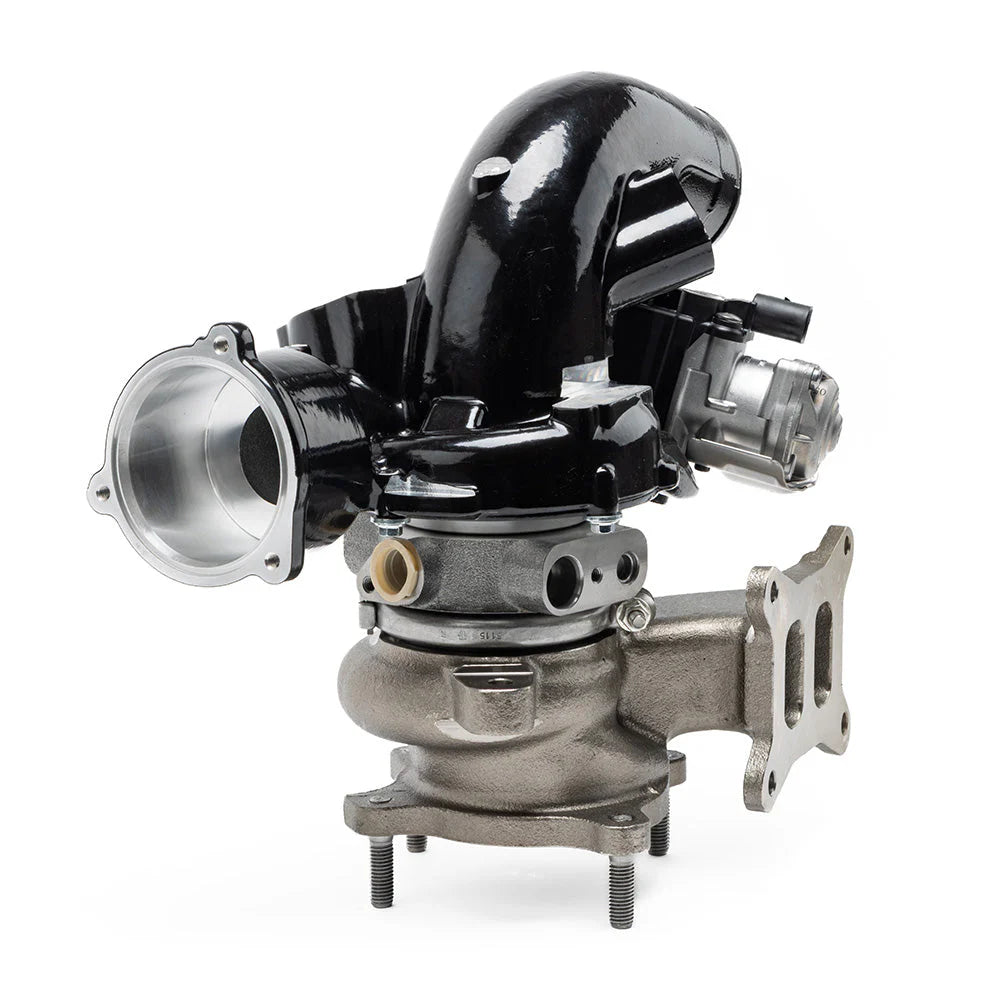

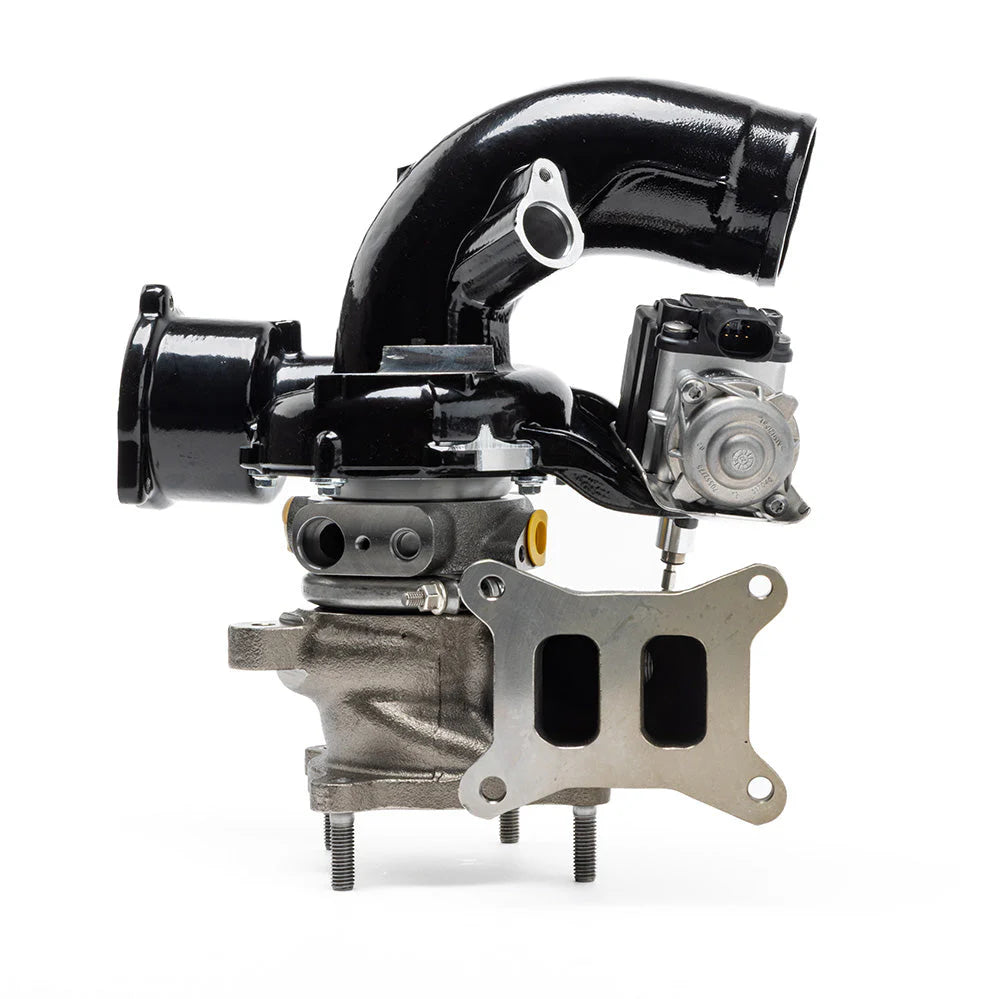

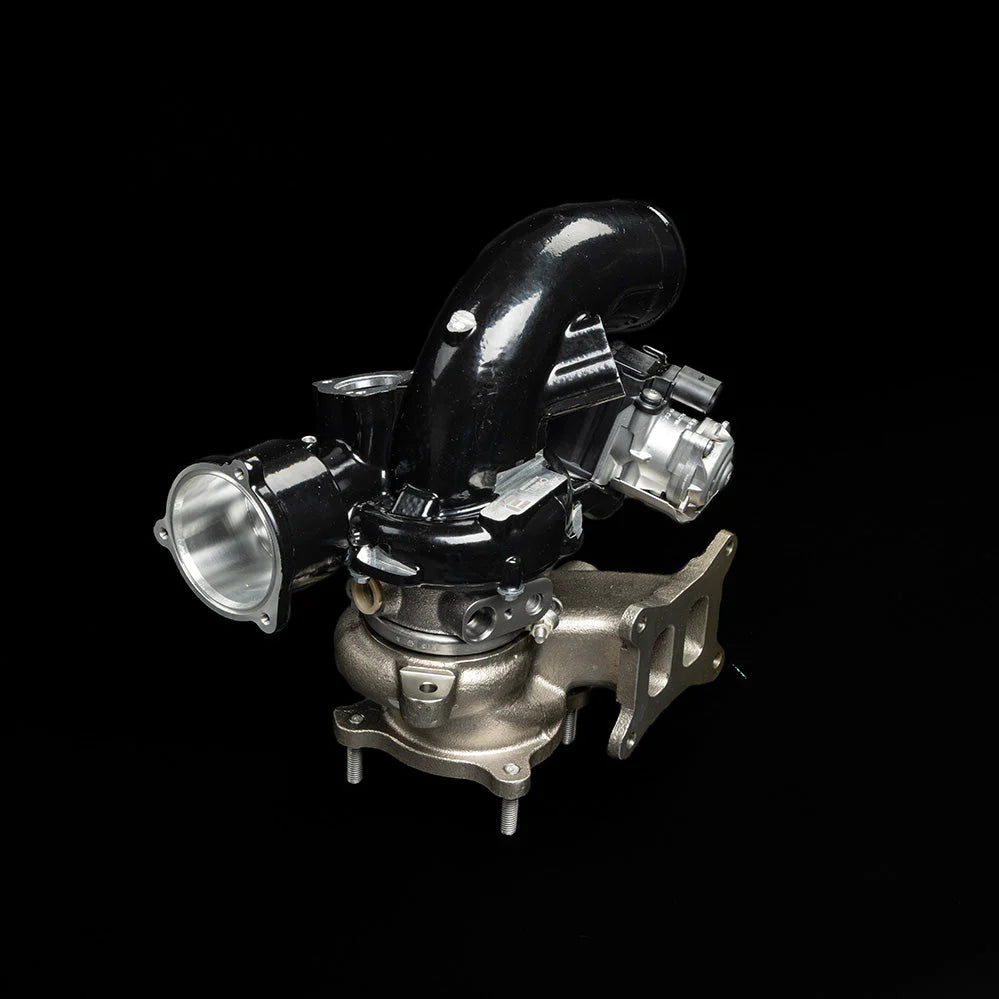

Turbo Systems B9 A4, A5, A4 Allroad 2.0T Hybrid Turbo
The iE B9 A4 / A5 Hybrid Turbo by Turbosystems erases the factory airflow ceiling to deliver a serious performance jump for your longitudinal 2.0T. This direct bolt-in hardware turns a quick car into a relentless powerhouse without sacrificing daily usability.
Spool Without the Wait
Budget hybrids often feel sluggish off the line. This ball bearing CHRA hybrid keeps power delivery crisp and immediate. Full boost arrives in the low 3000 RPM range, keeping the car's punchy, fun-to-drive character alive on the street.
Relentless Top-End
For beast-mode performance, your engine needs to pull a ton of air. This Stage 3 turbo upgrade delivers maximum airflow and boost pressure with larger, more efficient wheels, pushing your B9 A4 to new heights of aggression in motion.
More Flow, Less Compromise
The enlarged turbine housing is specifically balanced to lower exhaust back pressure without the typical "big turbo" tradeoffs. This is critical for maximizing pump gas performance. You get high-RPM flow while keeping the snappy, fast-spooling feel of a much smaller unit.
Stage 3 Foundation
This hybrid turbo is the foundation for the iE Stage 3 ecosystem. As part of a complete, calibrated, high-performance package, it’s a key player in unlocking your B9 A4’s full potential with our iE B9 A4 Turbo Systems Hybrid Tune.
Tech Specs
- Max Power Capability: 424 HP | 424 ft-lbs TQ
- Upgraded billet compressor wheel for maximum efficiency and flow (49/60 mm)

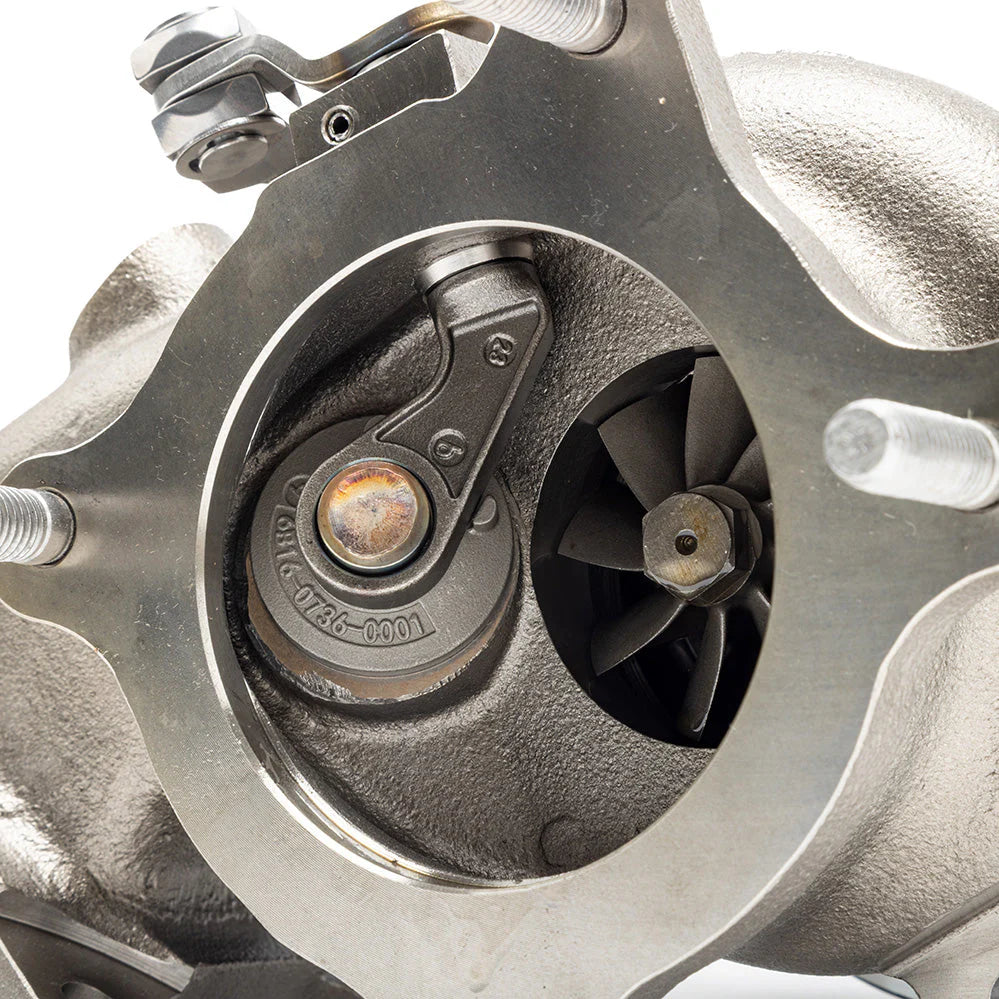

- High-flow turbine wheel reduces back pressure for top-end power (53/50 mm)

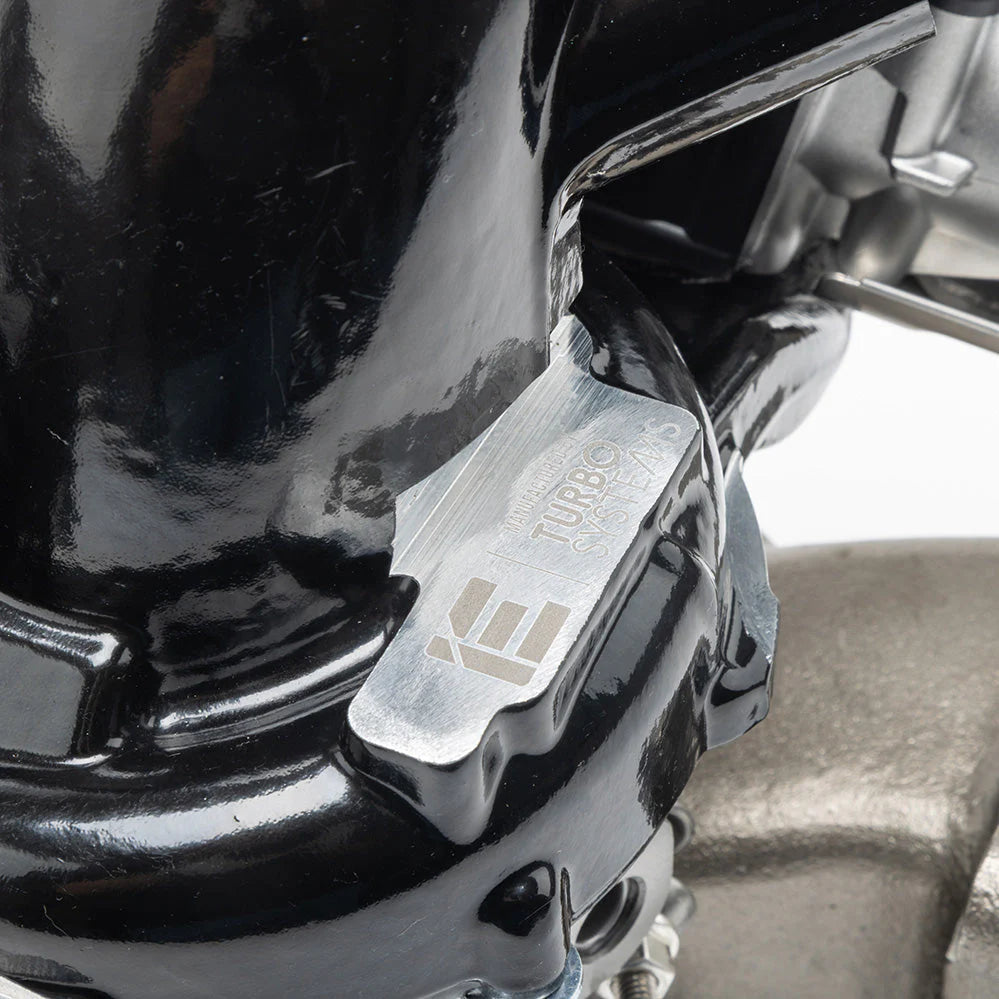

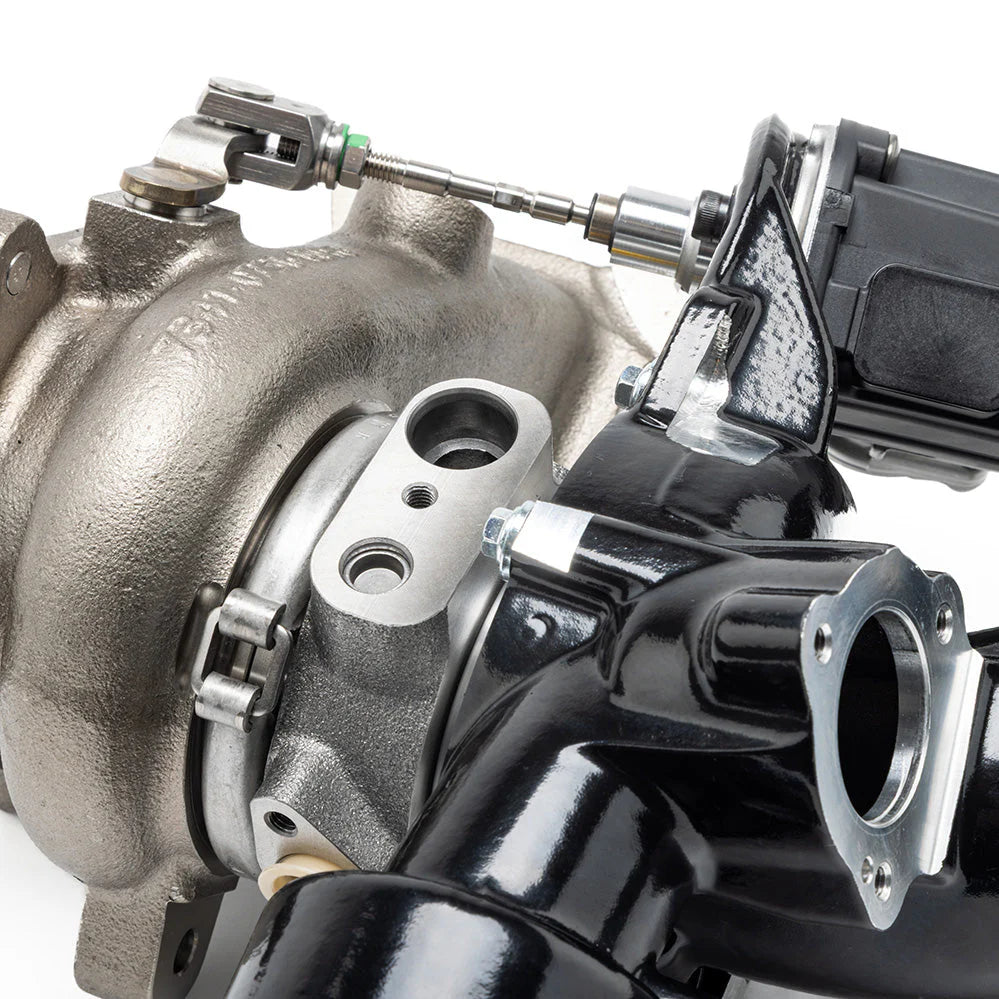

- Precision, IS38-based CNC-machined compressor and turbine housings
- Designed for the Audi B9 A4, A5, & Q5 2.0T engine.
- iE Stage 3 ECU Tune and TCU Tune required
- High-flow Intake, intercooler, and injector upgrade required
- Virtually indestructible, dual ceramic ball bearing
Other Parts Required
A specific iE B9 ECU Tune (plus Stage 3 MAP Pack) and TCU Tune are mandatory to run this turbo safely and correctly on your Longitudinal EA888 Gen 3. For hardware, you will need an upgraded air intake, intercooler, larger injectors, HPFP Upgrade (with internals), 5 BAR MAP sensors.
Fitment/Applications:
- 2017-2020 Audi B9 A4 Quattro 2.0T
- 2017-2020 Audi B9 A4 Allroad 2.0T
- 2018-2020 Audi B9 A5 Quattro 2.0T
- 2018-2020 Audi B9 Q5 Quattro 2.0T
