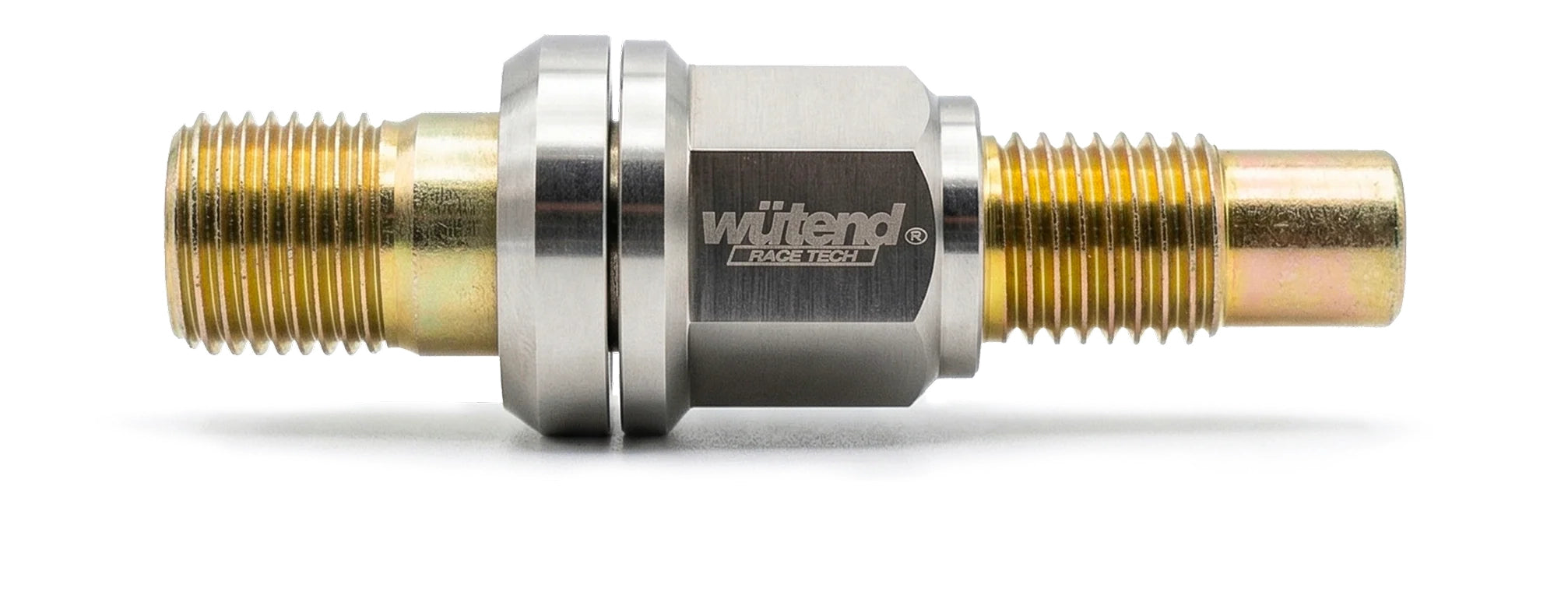

Wütend Race Tech Hybrid M14x1.25 to M12x1.5 PCD Stud Conversion Kit
The Wütend Race Tech true pcd conversion kit mitigates 99% of the issues one would experience when utilizing other inferior products currently available on the market. That's right, this is the last stud conversion kit you'll ever need.

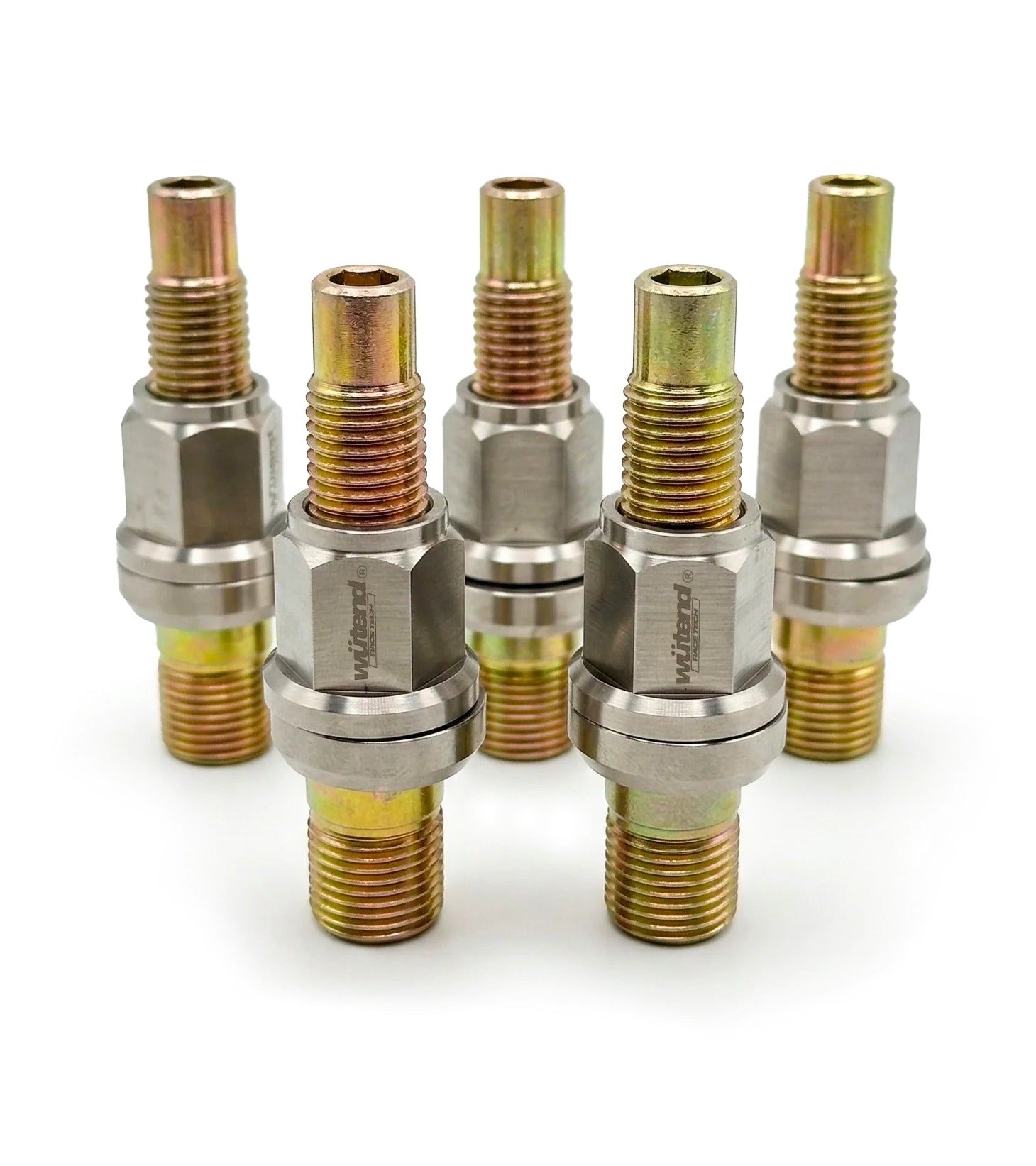

Sold as a set of 20 studs and nuts.
Whether you are general enthusiast looking to perfect the visuals of your passion projects, or a function based competitive driver shooting towards a reduction in lap times, THE solution has arrived.
To understand how this system works, we first have to answer the question of what PCD is and why would it need to be converted.
- PCD or Pitch Circle Diameter is the distance between the mounting holes on a vehicle's wheel or hub, in a circle. For example 5x112. (5) refers to the number of individual lug holes, or studs. (112) is the distance, in millimeters, apart from each other in a circle in which the studs or lug holes are spaced. A PCD conversion is necessary when the lug holes on a given set of wheels do not match the vehicle hub's PCD.

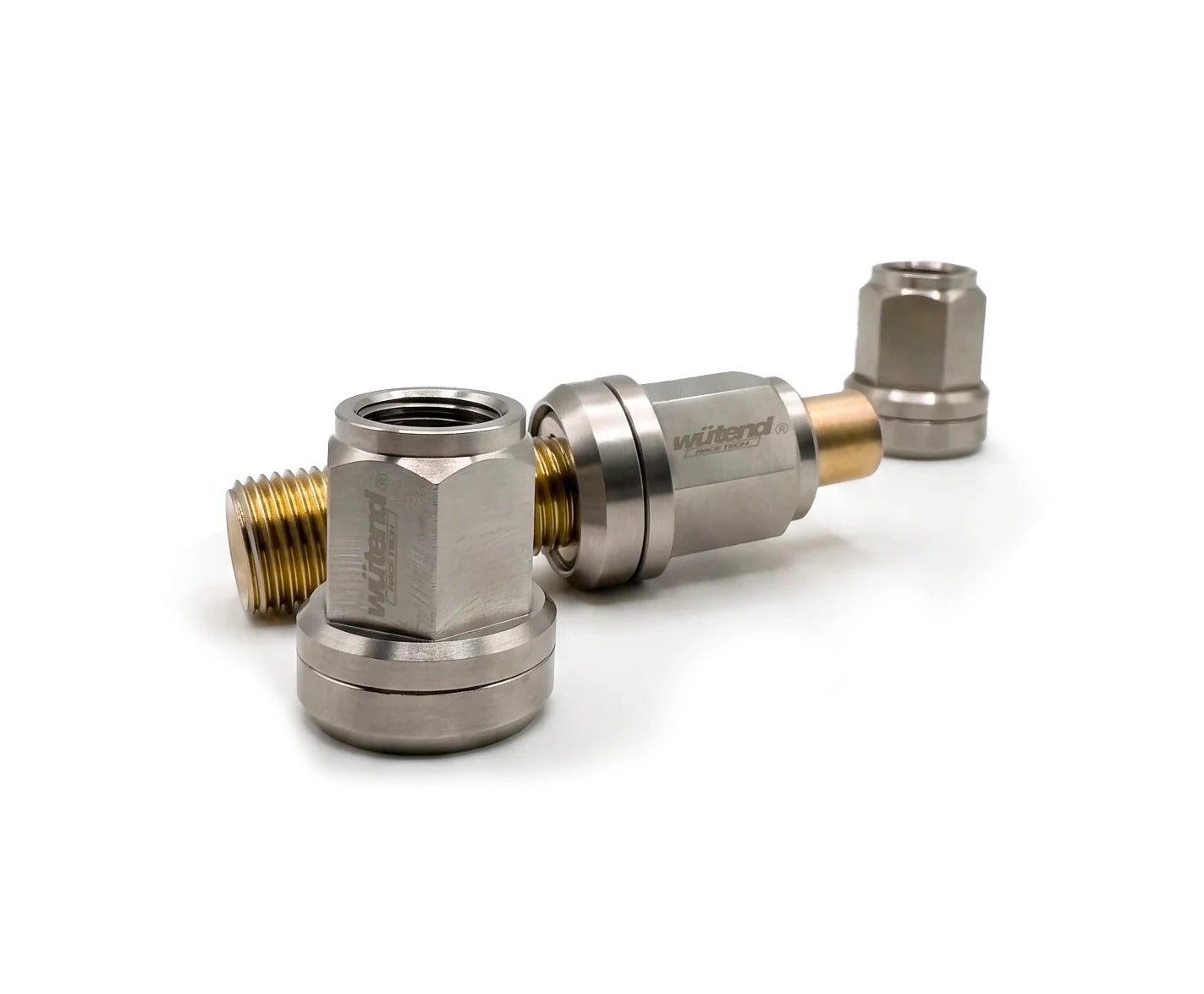

- This conversion kit works by simply offsetting the variance, allowing the PCD variable washer to seat itself center on the lug hole, while the nut shifts its center point to the stud.
This true PCD Conversion Kit mitigates 99% of the issues one would experience when utilizing other inferior products currently available on the market that are simply band-aids disguised as solutions.
Expanding your wheel options couldn't be easier! if your vehicle comes standard with M14 wheel bolts with a 1.25 thread pitch thread pitch, you can now...
- Fit 5x112 wheels on your 5x110 vehicle
- Fit 5x110 wheels on your 5x112 vehicle
- Fit 5x114.3 wheels on your 5x112 vehicle
- Fit 5x112 wheels on your 5x114.3 vehicle
Wütend Race Tech's PCD Stud Conversion can also be utilized as a Standard Stud Conversion!
Installation
