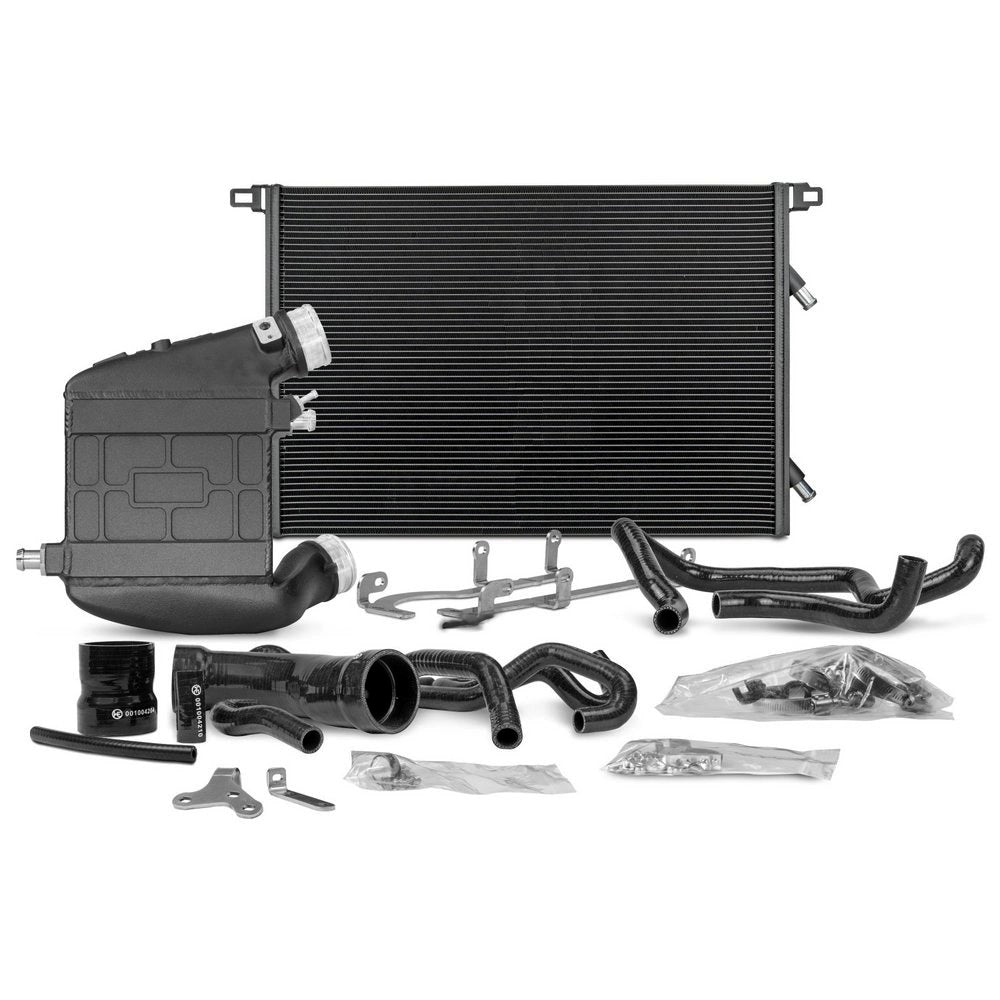

Wagner Tuning Audi B9/B9.5 RS5 2.9T Competition Package - Intercooler and Radiator
Experience ultimate performance with the Wagner Tuning competition package for the Audi B9/B9.5 RS5. Includes Wagner Tuning intercooler and radiator upgrade kits.
Intercooler Kit:
Advantages at a glance:
- Significantly improved cooling performance for optimal performance development
- Minimized back pressure for optimized performance
- More power and torque for a more intense driving experience
- Mechanical unloading of the turbocharger for a longer service life
- 100% compression strength for maximum reliability
- Easy and hassle-free plug and play installation using
- Up to 4 years warranty for a worry-free driving experience
The Wagner Tuning high-performance intercooler was specially developed for the demanding 2.9 liter V6 biturbo engine (VW EA839) of the Audi RS4/RS5 models. It replaces the standard water-cooled intercooler and offers you a multitude of advantages.
With the new performance intercooler core, Wagner Tuning have increased the core volume by an impressive 185%. Due to the optimal ratio between the inner and outer cooling surface, maximum heat transfer and optimal internal air flow are ensured. The cast aluminum end boxes were designed in CAD and perfected with the help of CFD simulations to provide the best possible air flow to your engine. The result is outstanding cooling properties with minimal back pressure. This high-performance intercooler is also ideal for track use and ensures optimal cooling of the charged air with a significant increase in performance.
For a lasting and reliable cooling effect, all Wagner Tuning intercoolers are equipped with a heat-conducting anti-corrosion coating.
The installation of the system is easy and straight forward thanks to the detailed installation instructions. Everything is designed to be plug and play with your Audi RS5.
Bring your Audi RS4/RS5 to a new level of performance with the Wagner Tuning high-performance intercooler. Experience outstanding cooling performance and maximum performance at all times, no matter how hot it is!
Factory equipped intercooler core dimensions:
- 220 mm x 100 mm x 85 mm
- Volume = 1.87 Liter
Wagner Tuning intercooler core dimensions:
- 222 mm x 200 mm x 120 mm
- Volume = 5.33 Liter (+185%)
Radiator Kit:
Advantages:
- Reduction of cooling water temperature
- Competition racing mesh increases the radiator volume of the standard water cooler by 55
- Optimised ratio between inner and outer cooling surface
- Thermally conductive anti-corrosion coating for long-term cooling effect
- Easy installation thanks to user-friendly installation instructions (almost plug & play)
The 2.9L V6 biturbo EA839 engine of these models is equipped with an advanced indirect charge air cooling circuit. Unlike conventional systems, the charge air cooling process is not realized by ambient air, but by a separate cooling water circuit. A reduction in the cooling water temperature therefore leads directly to an improved cooling performance of the charge air. This is where the advantages of the Wagner Tuning Upgrade water cooler come into their own.
The newly developed competition racing core of the Wagner Tuning high-performance water cooler increases the radiator volume of the standard water cooler by an impressive 55%. The optimized ratio between the inner and outer cooling surface ensures maximum heat transfer and at the same time guarantees sufficient air flow for adjacent components such as the engine water cooler. In addition, the water coolers are equipped with a thermally conductive anti-corrosion coating that ensures a long-term cooling effect. Installation of the system is straightforward and virtually plug & play thanks to the included user-friendly installation instructions.
Dimensions of the factory equipped water cooler:
- 720 mm x 485 mm x 25 mm
- V = 8.73 liters
- A = 3492 cm²
Wagner Tuning water cooler dimensions:
- 690 mm x 490 mm x 40 mm
- V = 13.52 liters
- A = 3381 cm²
Fitment/Applications:
- 2018-2024 Audi B9/B9.5 RS5
