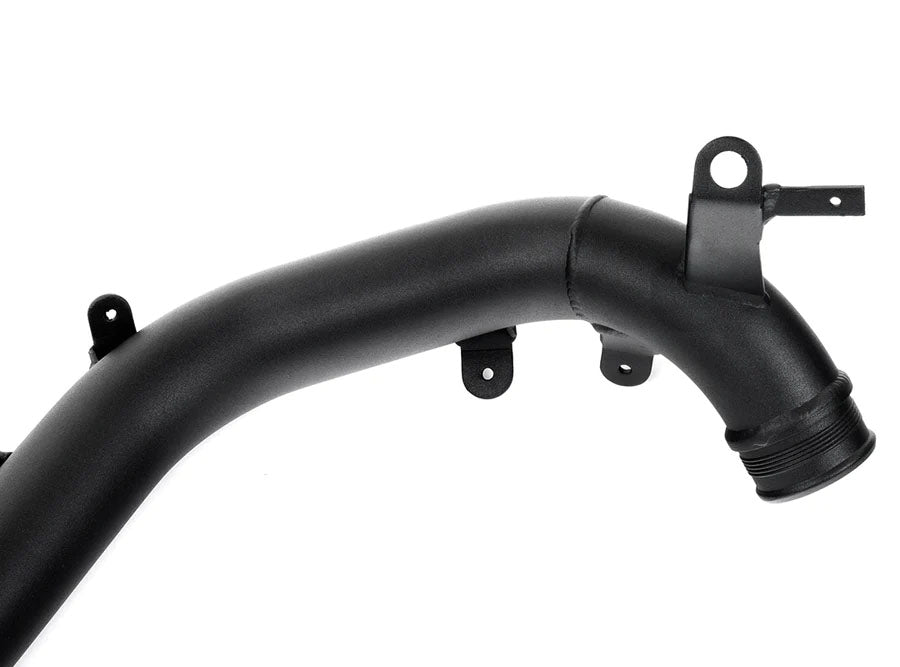

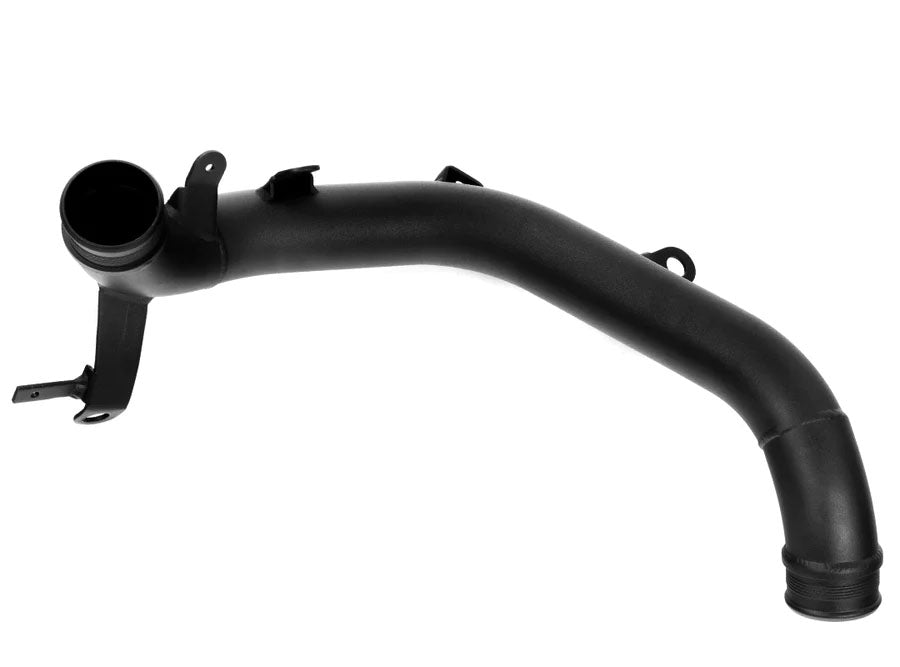

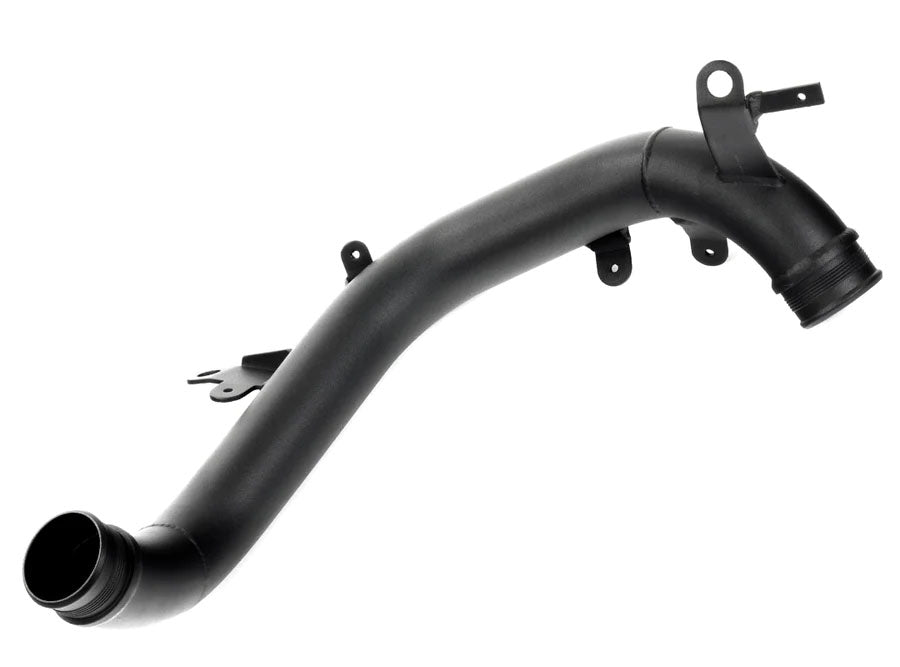

Integrated Engineering Turbo Outlet Pipe - VW Mk8 Golf R, GTI, Audi 8Y A3, S3

IE’s NEW Turbo Outlet Pipe for the VW MK8 GTI/R & Audi 8Y A3/S3 eliminates turbulence and significant airflow restrictions caused by the factory plastic and pinched outlet pipe. By reducing sharp bends, our constant diameter aluminum design gains a 13.44% increase in flow over stock. Separate CNC hose ends are welded to the mandrel bent pipe to offer a solid crush-proof base with grip-lock ribbing and a radius end to keep boost hoses in place. All harness, coolant line, and mount clip brackets are retained and TIG welded for a complete factory installation. For GTI & A3 engines, the IE Turbo Muffler Delete provides an additional uninterrupted and smooth path for compressed airflow to exit your turbocharger and release that enthusiast-loving boost sound!

NOTE: Golf R and S3 turbo mufflers are built into the factory turbo outlet pipe and are not compatible with the IE Turbo Muffler Delete

LEADING FEATURES

• Replaces restrictive pinched plastic stock pipe
• Constant diameter design delivers a 13.44% increase in flow over stock
• Reduces airflow turbulence directly out of the turbocharger
• Mandrel bent and TIG welded aluminum
• CNC machined hose ends with a radius edge and grip-lock ribbing
• CNC-machined thick hose ends with no worry of crushing the pipe
• Retains all factory harness, coolant, and mounting clip locations
• Complete bolt-in replacement performance unit
• Black powder coat finish for a long-lasting attractive look
• Perfect match to IE Turbo Muffler Delete (GTI/A3)
• Removes integrated turbo muffler on R/S3

CONSTANT DIAMETER

Your stock-equipped turbo outlet pipe comprises flow-killing tight bends and pinched walls that create a severe flow restriction at the most critical part of the charge system directly off the turbo. IE’s turbo outlet pipe replaces the plastic stock pipe with an aluminum performance design mandrel bent to retain a constant diameter for the cleanest airpath possible.

FLOW RESULTS

Back-to-back flow bench testing shows consistent airflow gains over the stock turbo outlet pipe. The chart above details flow gains (CFM) over stock.

The factory pipe fails to provide optimal flow in a performance build and is manufactured from a hard plastic that can lead to cracks and leaks in heavy boost conditions. IE's Turbo Outlet Pipe takes full advantage of all available space with a unique shape to maximize airflow. This optimized design results in a much improved 13.44% increase in flow over stock!

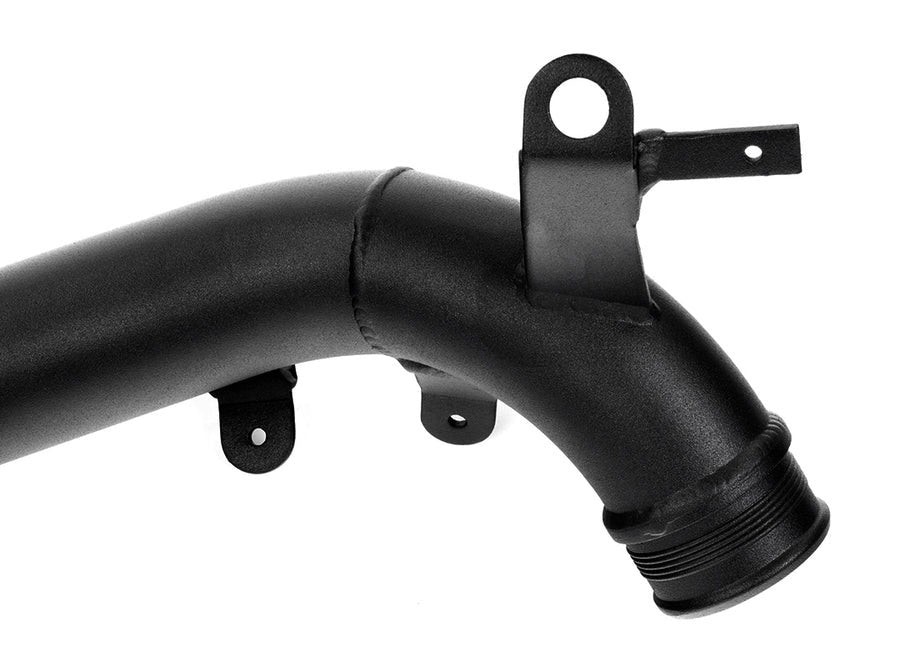

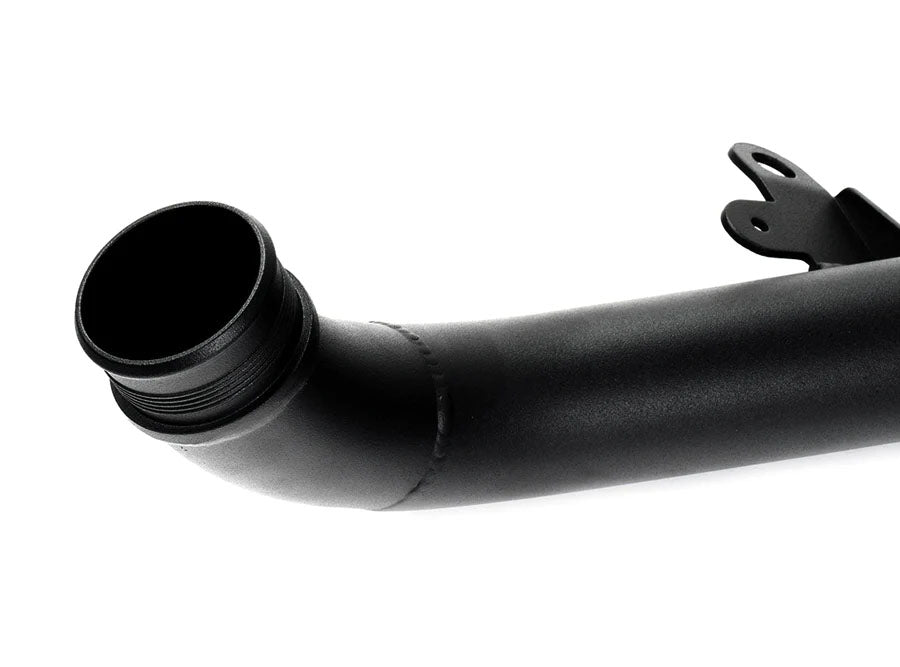

CNC HOSE ENDS

Most aftermarket charge pipe designs bead-roll the end of the thin-walled aluminum tube for the hose connection creating an easily crushed tube when tightening clamps leading to boost leaks. Our turbo outlet pipe features thick-wall CNC machined aluminum ends TIG welded onto the pipe with grip-lock ribbing and a true radius end. This seemingly small detail provides a crush-proof and leak-free connection for your boost hoses.

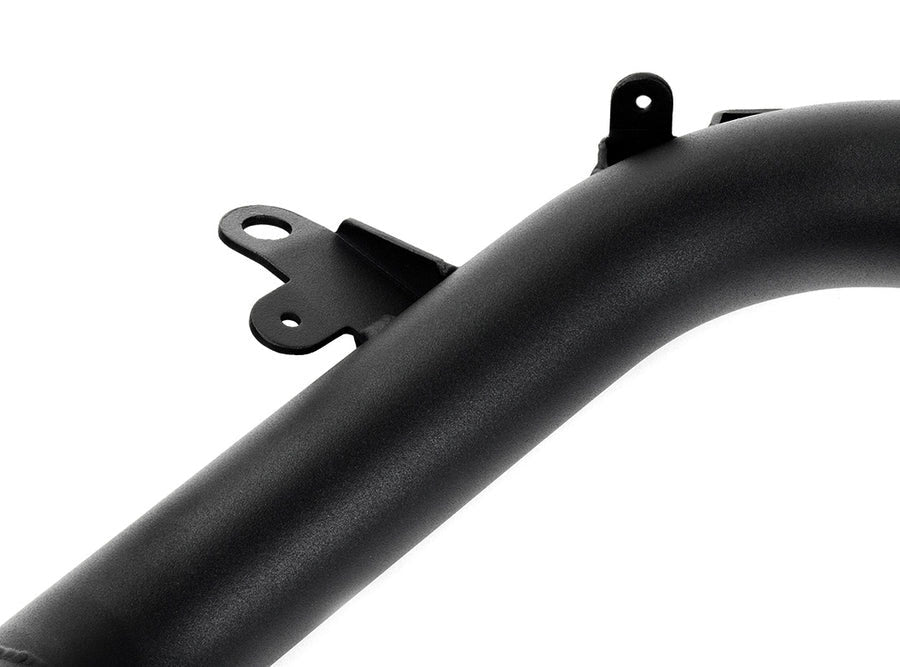

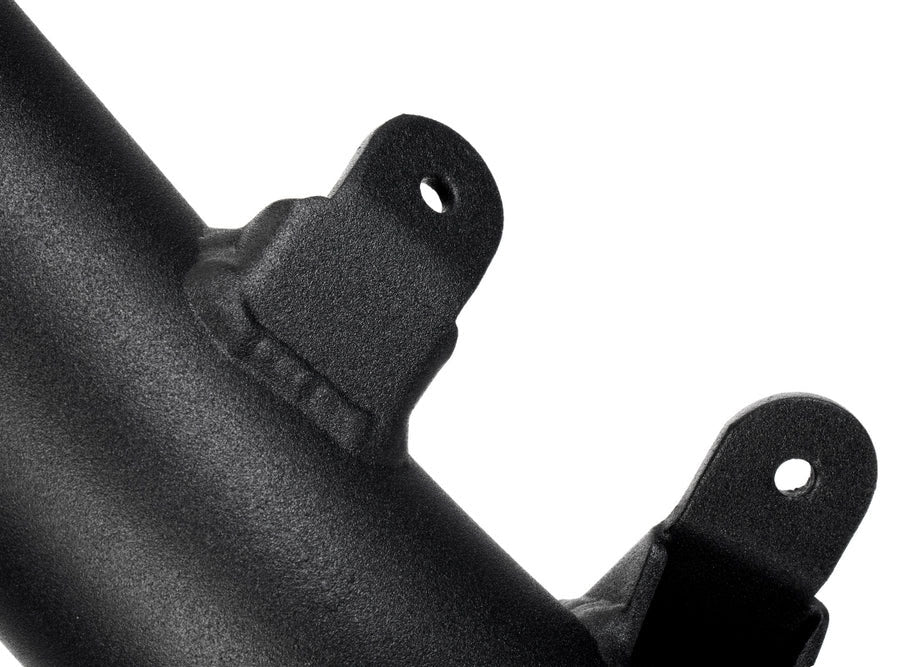

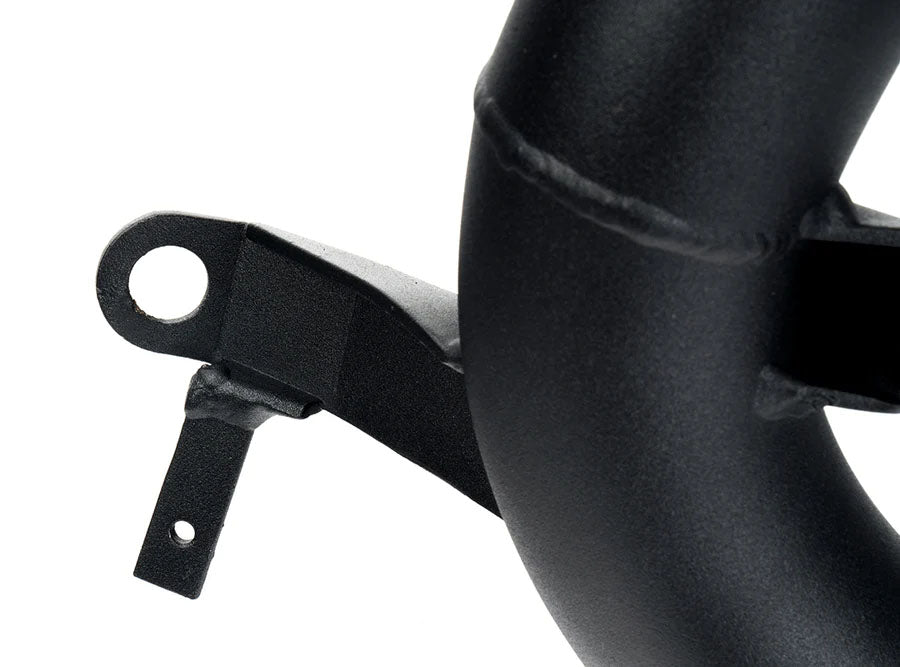

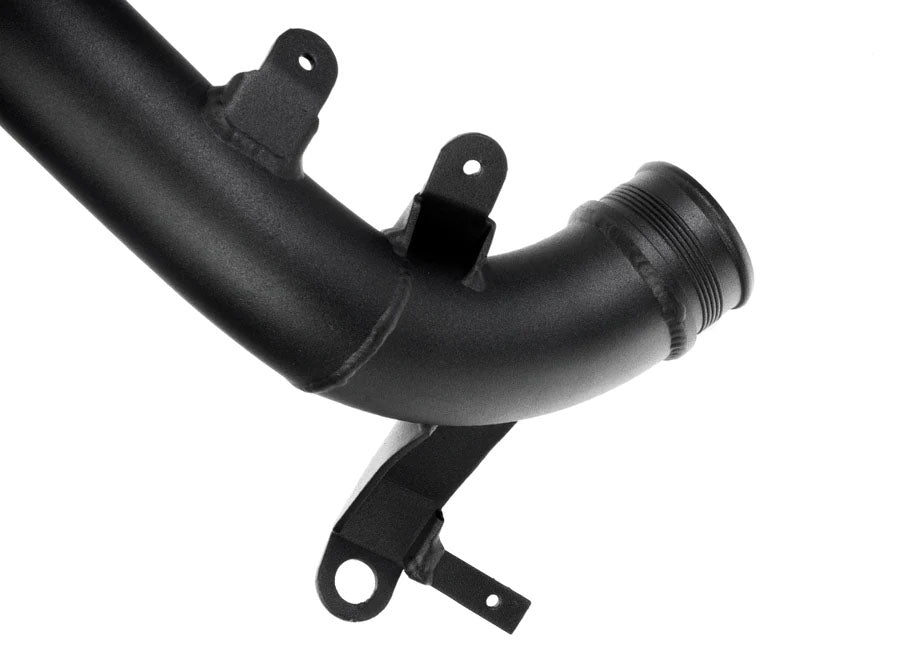

INTEGRATED MOUNT POINTS

Using advanced 3D scanning and modeling software, IE engineers made sure to include all factory mount points on our turbo outlet design to ensure no parts are left hanging or rubbing. These TIG-welded brackets retain all the factory harness, hose, and clip mounts for a proper factory-like quality install.

OPTIONAL TURBO MUFFLER DELETE

For GTI & A3 engines, installing the new turbo outlet pipe will gain you easy access to the factory-installed restrictive turbo muffler. This is the perfect time to upgrade this part with the IE Turbo Muffler Delete and provide an additional uninterrupted and smooth path for compressed airflow to exit your turbocharger and release that enthusiast-loving boost sound. (sold separately)

Golf R and S3 turbo mufflers are built into the factory turbo outlet pipe and are not compatible with this part.

INSTALLATION

IE turbo outlet pipe installs without any permanent modifications. The installation process can be done with basic tools but does require removing the belly pan, plastic mount clips, and the radiator fan. Installing our IE turbo muffler delete on GTI & A3 engines involves the same process, so upgrading both simultaneously is highly suggested.

Install time around 2 hours

Please click or tap here for installation instructions

FITMENT/APPLICATIONS:

• 2022+ VW Mk8 Golf R 2.0T
• 2022+ VW Mk8 GTI 2.0T
• 2022+ Audi 8Y S3 2.0T
• 2022+ Audi 8Y A3 2.0T
