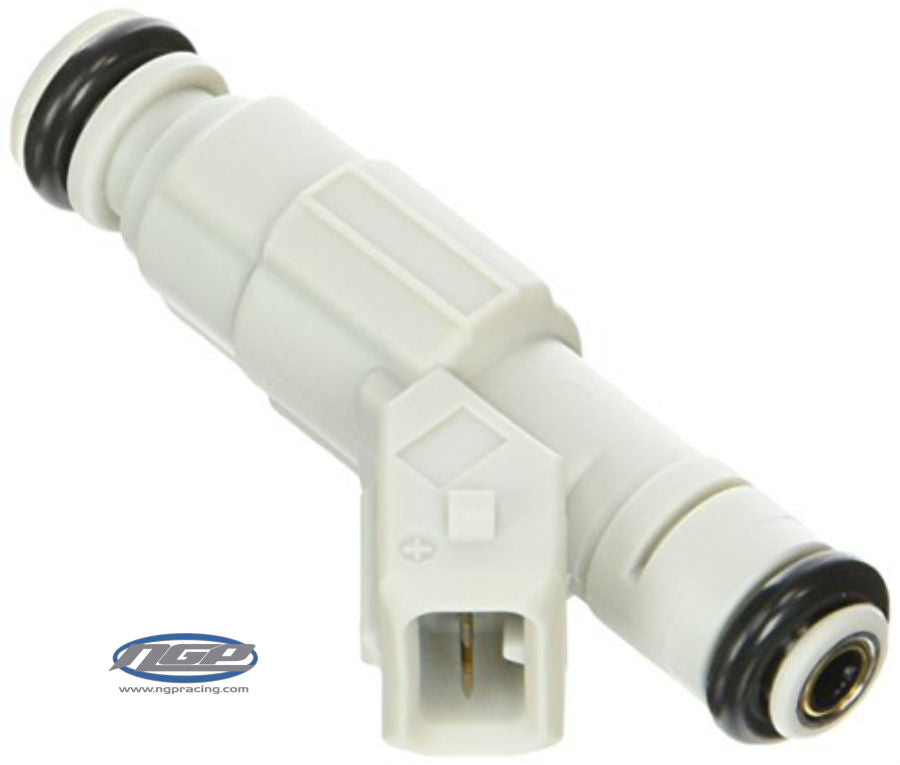

Bosch 36# (380cc) High-Z Fuel Injector

Special Order

Bosch 36# (380cc) High-Z Fuel Injector

Genuine Bosch (380cc) High-Z 36lb/hour Fuel Injector with EV1 Connector

Priced individually

These injectors flow 36 lbs/hr at 43.5 PSI ( 3 BAR ) and much more at higher PSI! In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths. This allows you to use a larger injector than normally possible without hurting idle and low speed drivability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector. These injectors represent the most current Bosch engineering and are used on many high power turbo oem applications.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures and in fact, that is exactly what they were designed for!

Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a split / wide cone spray pattern for improved mixture preparation and atomization. This results in lower BSFC and better idle quality than many injectors with less flow.


  • Genuine, reliable Bosch Injectors
  • Excellent response characteristics
  • Robust Design
  • High Impedance
  • Low Impedance performance characteristics with High Impedance Compatibility


          • Coil Resistance: 12 Ohms (This high-impedance injector will work with all factory ECM/PCM injector drivers)
          • Spray Pattern: Dual Spray Wide Cone / Split Cone
          • Electrical Connector: EV1
          • Fitted with Viton upper and lower o-rings.
          • Flow Rate: 36 lb/hr @ 43.5PSI [550cc]


                  • Domestic & Import Applications
                  • Made for high pressure, harsh environment turbo & supercharged applications! 1.8T, 12v VR6, 24v VR6

                  Manufacturer PT#-[Bosch]- 0 280 155 868 (0280155868)

                  Mk4 12v VR6 (AFP) engines will require an aftermarket intake manifold in order to use these injectors.
