Autotech Wavetrac Hybrid Torque Biasing Limited Slip Differential - FWD 02Q VW Transmission
For Audi/VW FWD 02Q 6-speed transmission.
• Innovative: Patent pending Wavetrac® design automatically improves grip in low traction conditions. This feature is truly innovative and unlike any other torque biasing diff design.
• Customizable: If desired, the diff’s behavior can be altered to suit your needs.
• Superior Materials and Construction: 9310 steel gears run in case-hardened billet steel bodies. ARP® fasteners used throughout.
• Limited LIFETIME Warranty: All Wavetrac® differentials include a transferable, Limited Lifetime Warranty.
Enhanced No-Load Bias Ratio via its Wave Design Center Pack
One of the known shortcomings of a typical torque biasing differential is its loss of drive (behaving much like an open diff) under zero or near-zero torque conditions (for example, when there is ‘no-load’ applied through the drivetrain, either at vehicle stationary and/or transition from engine driving vehicle to engine braking and back).

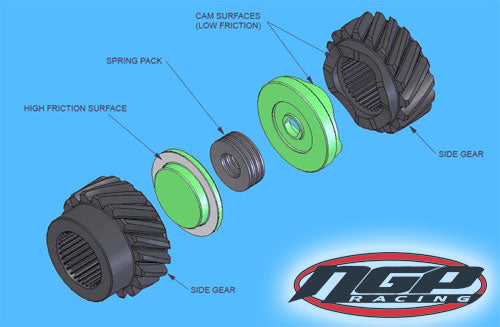

The Wavetrac® differential uses a patent pending design to improve grip in low traction conditions. Precisely engineered, converging/diverging wave profiles are placed on one side gear and its mating preload hub. As the two side gears rotate relative to each other, each wave surface climbs the other, causing them to move apart. This imparts an increased normal force through the side gears, increasing the bias ratio as a function of load. This increase occurs automatically only when conditions fi nd it necessary, and it ‘reverts’ back to its nominal bias ratio quickly and seamlessly, maintaining opti- mal drivability and performance at all times. It’s like having two differentials in one: you get the benefi t of a higher bias ratio when needed without detriment to the car’s handling.
Interchangeable Friction Plates Provide Controlled Bias
fi ne-tune the bias ratio are sold separately. These friction plates provide a mechanism to tune the response of the differential as a function of applied torque load. The applied torque load manifests itself as an axial load from the differential pinions into the housing. This axial force is then considered a normal force into the friction plate, and as a function of the effective coefficient of friction, will provide a resistive torque to the rotational motion of the differential pinions. The resistive torque will add to the resistance of relative rotation of all components within the differential. The resistive force, however, is non-uniform since it is a function of the axial load from the differential pinions. The unbalance of the resistive torque will manifest as non-uniform energy absorption within the differential causing a bias ratio.
Superior Design, Materials, and Construction

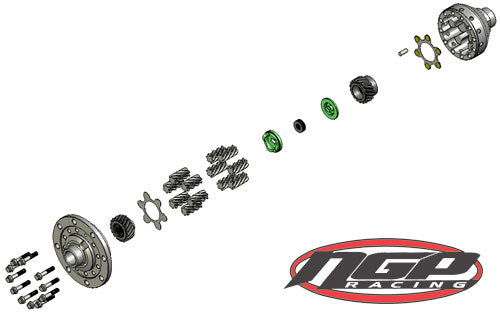

Designed from a clean sheet, the new Wavetrac® Differential brings current gear technology to the market. Internally, its gear tooth forms are optimized for strength and improved oil fi lm retention over competitive designs. Our gear package is smaller, reducing overall mass, yet is more durable. Attention was also paid to the side gear/axle interface, putting as much material thickness as possible in this critical area – most important when power levels get high. Each Wavetrac® Differential is crafted from the highest quality materials available. The internal gears are made from high strength 9310 alloy steel. The diff bodies are machined from case hardened steel billet. To complete the package, every Wavetrac® differential is built exclusively using high quality, high strength fasteners from ARP®, the world leader in fastener technology.
Applications:
- 2006-2009 VW Mk5 GTI, GLI, Jetta 6spd manual
- 2006-2016 VW Eos 6spd manual
- 2010-2014 VW Mk6 GTI 6spd manual
- 2012-2019 VW Beetle 6spd manual
- 2011-2017 VW Mk6 Jetta 6spd manual
- 2006-2010 VW B6 Passat 6spd manual
- 2009-2017 VW B6 CC 6spd manual
- 2015-2021 VW Mk7, Mk7.5 GTI 6spd manual
- 2006-2014 Audi 8P A3 6-spd manual
Fits the above models equipped with a manual transmission only.
Does not fit Mk7 vehicles equipped with factory electronic differential. If you have an electronic factory differential, please see this listing instead.
