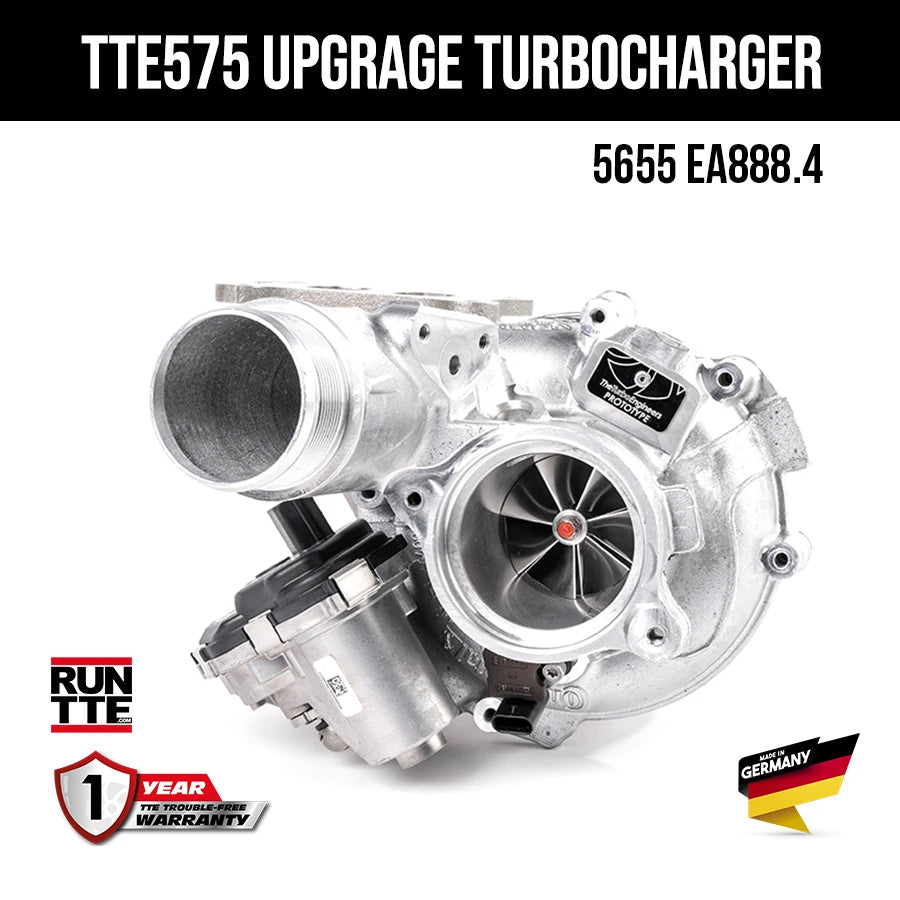

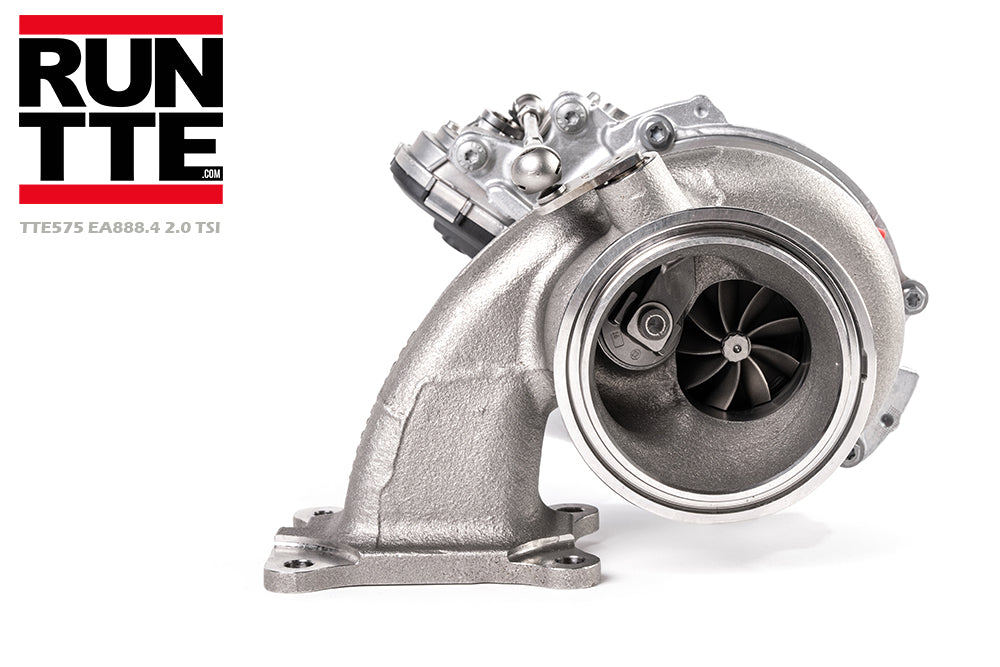

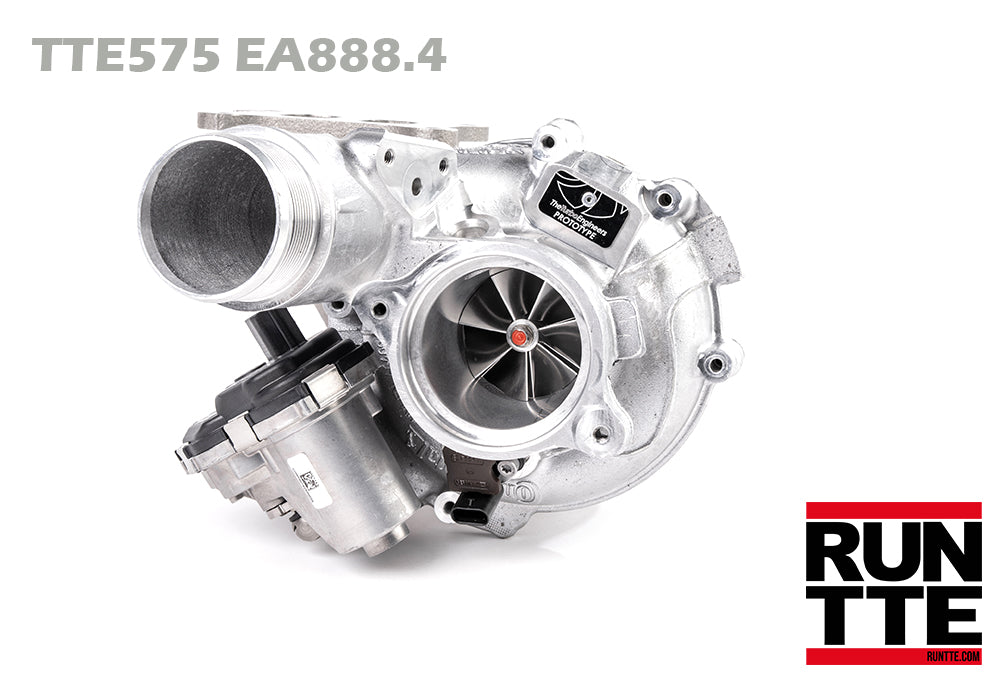

TTE575 5655 EA888.4 Gen 4 TSI Turbocharger - VW Mk8 GTI, Golf R, Audi 8Y S3
The TTE575 is the very latest hybrid performance upgrade turbocharger based on the original factory turbocharger for the Gen. 4 VW/Audi EA888 2.0TSI engine.
We feel this is the best performing hybrid currently available for the Gen. 4 TSI engine. Built using proven TTE parts and components, this turbocharger is highly developed and backed up with the TTE TROUBLE FREE WARRANTY for peace of mind.
This turbocharger offers Stage 3+ power, with fantastic spool, response and is built to last.
Important note* While the hardware in this listing is compatible with your vehicle it is possible that the required tuning is not. To confirm ECU tuning is available for your car, your vehicle's ECU box code must be identified. If you own VAG COM, OBDeleven, Carista, or have access to factory VW/Audi diagnostic tooling, you can follow this guide to identify your ECU box code. You can also visit either New German Performance shop location and our staff will be happy to assist. You assume all risk if this turbocharger is purchased and installed without first confirming the required software is available. No returns are accepted for installed turbocharger kits.
Engineered & Enhanced for EA888 Gen 4
To construct a TTE575, TTE changes the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. TTE replaces the original turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. TTE also replaces the original thrust bearing for TTE upgrade 360 deg that is made in-house.
The 9 Blade TTE turbine is a special design by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving their balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using their in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Highlights:
- Original Genuine turbocharger as the base part
- TTE Billet Milled compressor 7+7 Blade 56mm Inlet
- TTE High-Flow Low- Mass 9 Blade Turbine 55mm Outlet
- TTE Reinforced bearing pack
- 550PS+ proven on 98ron fuel (100-200 time, full weight 6.7 sec)
- Proven TheTurboEngineers quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Software recalibration is required
- 1 YEAR TTE TROUBLE-FREE WARRANTY
- Made in Germany
Please Note: This turbocharger is only available as new with no option to exchange or upgrade a used core.
95% PLUG & PLAY WITH SOME MINOR ADJUSTMENT OF OIL LINE REQUIRED. NO ACTUATOR IS SUPPLIED, ONLY SHOWN IN IMAGE FOR ILLUSTRATION.
Fitment/Applications:
- 2022+ VW Mk8 GTI
- 2022+ VW Mk8 Golf R
- 2022+ Audi 8Y S3
