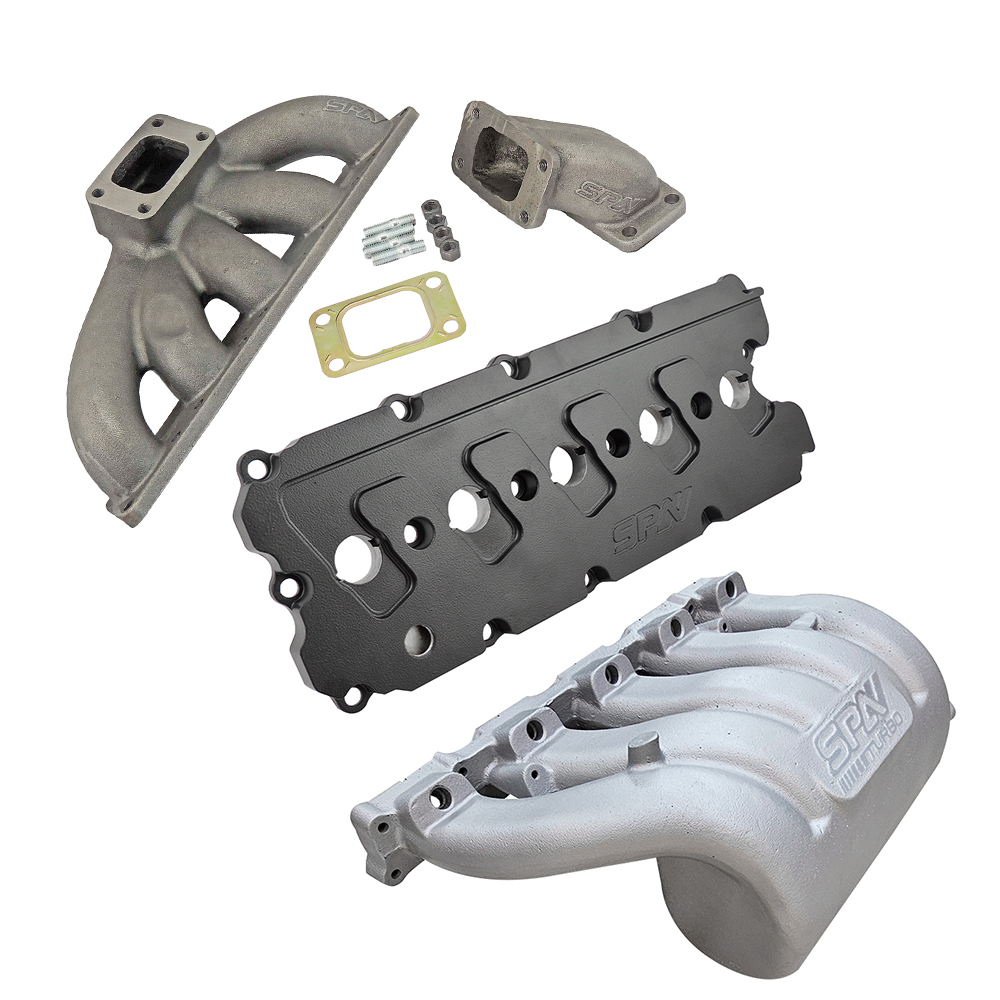

SPA Turbo Turbo manifold, cast aluminum valve cover & intake manifold for VW Jetta/Golf MK4 2.5L 5-cyl 20V 07K.

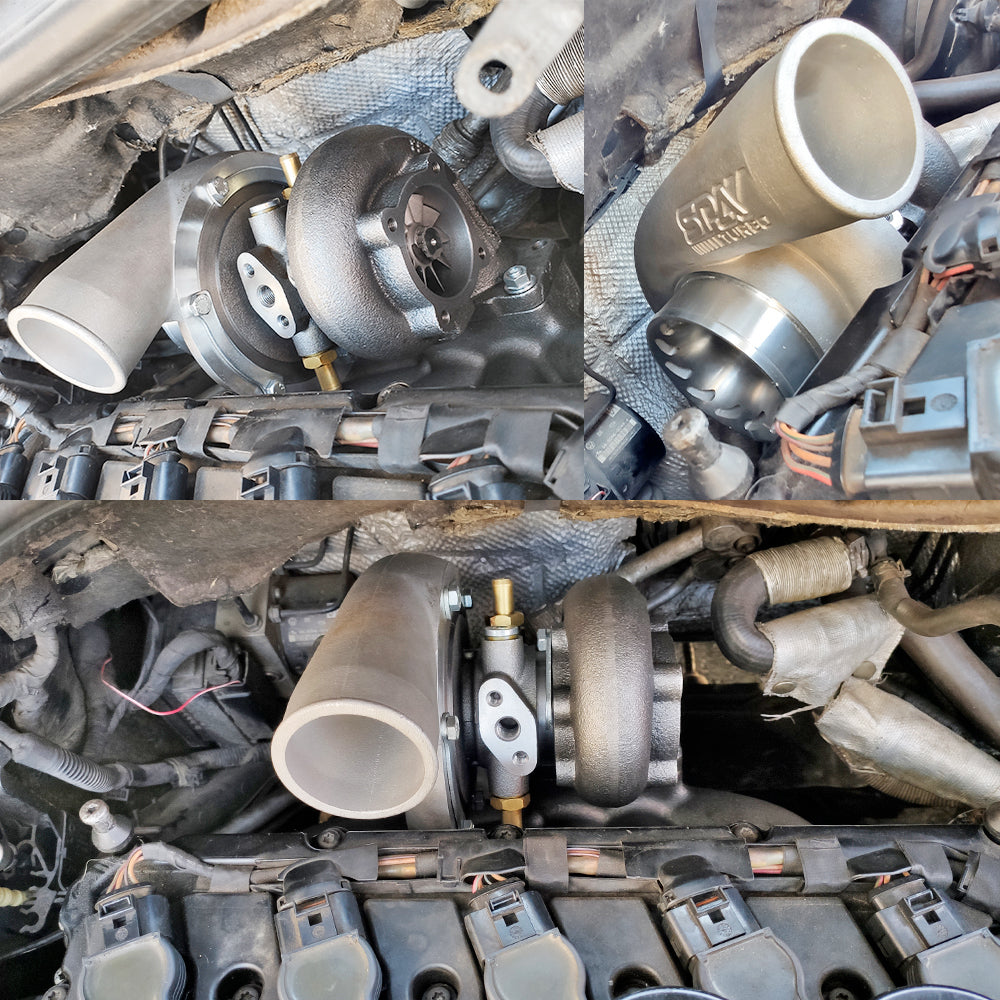

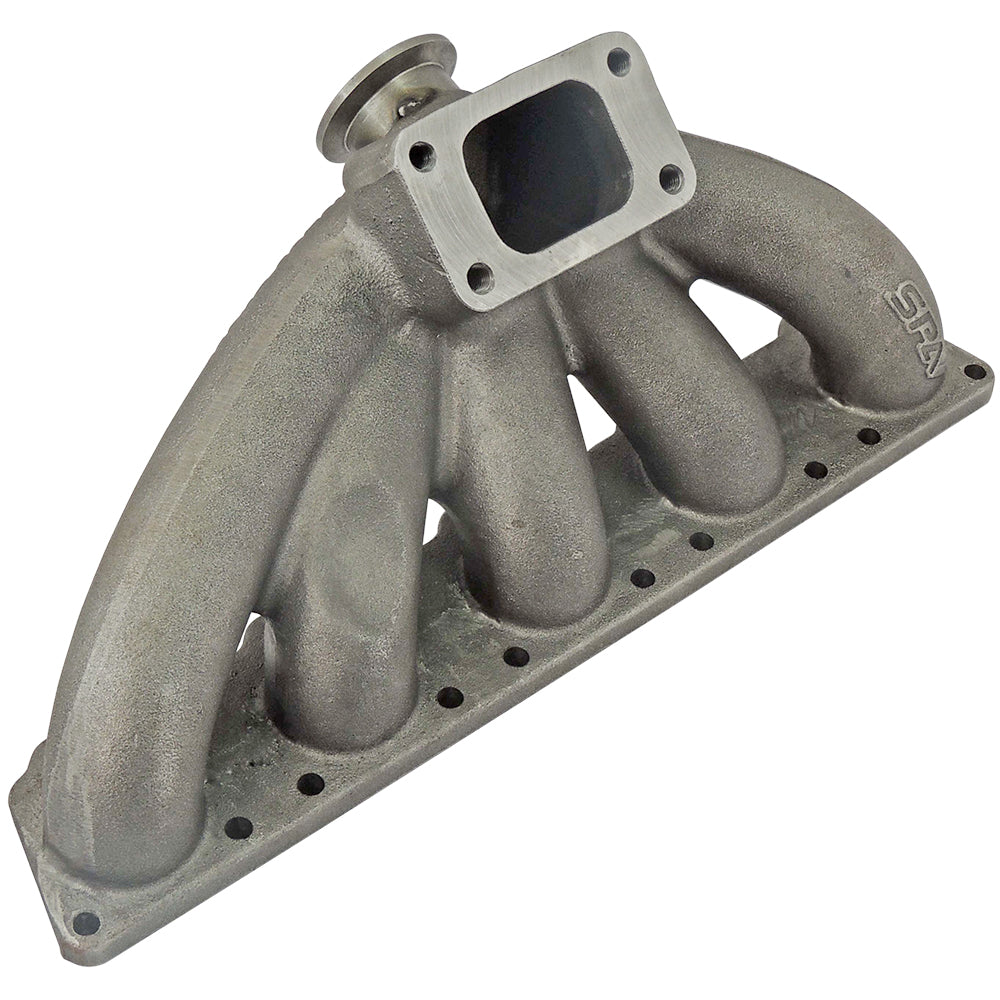

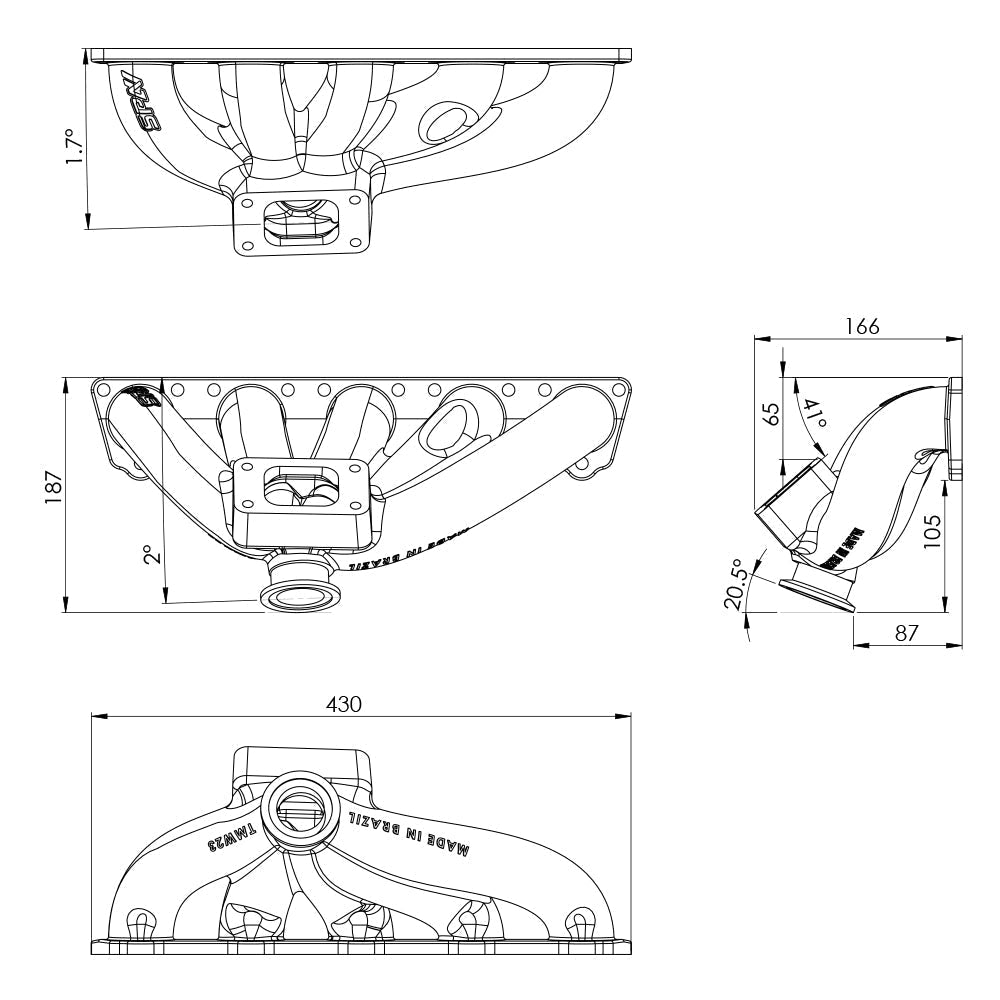

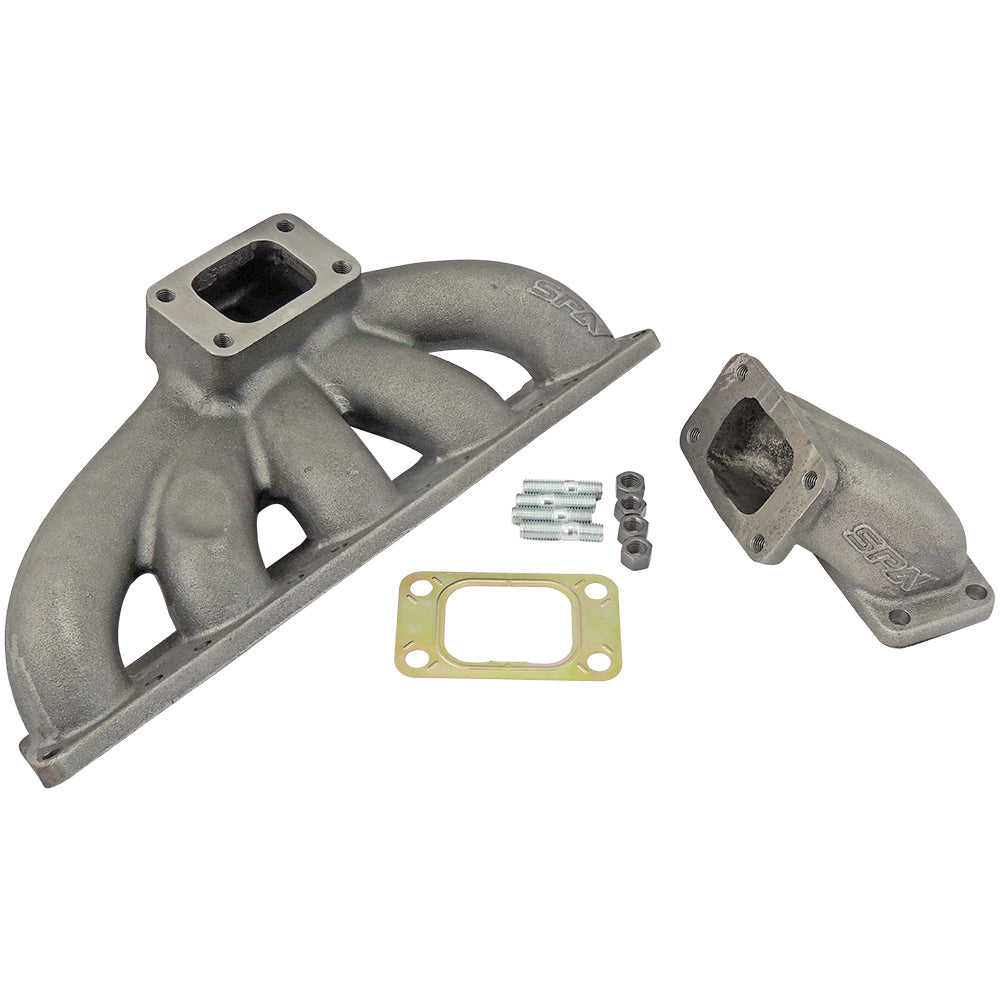

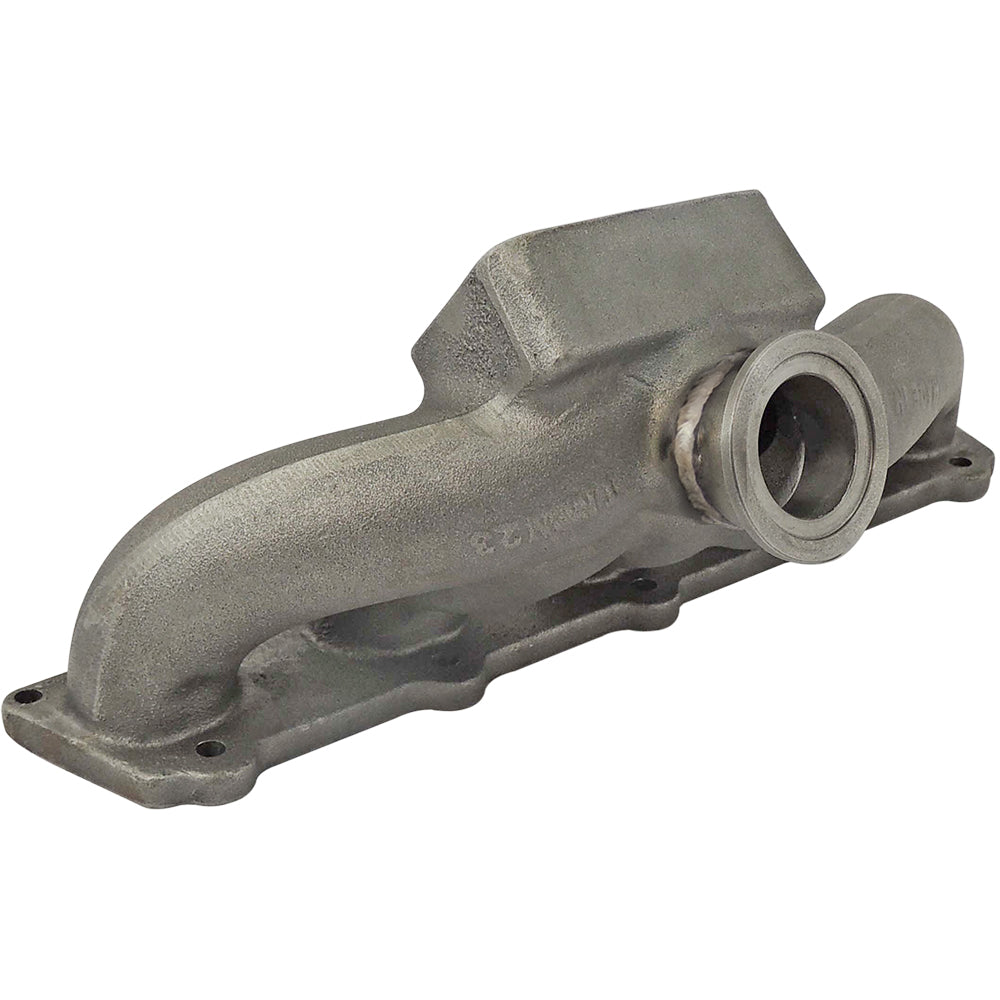

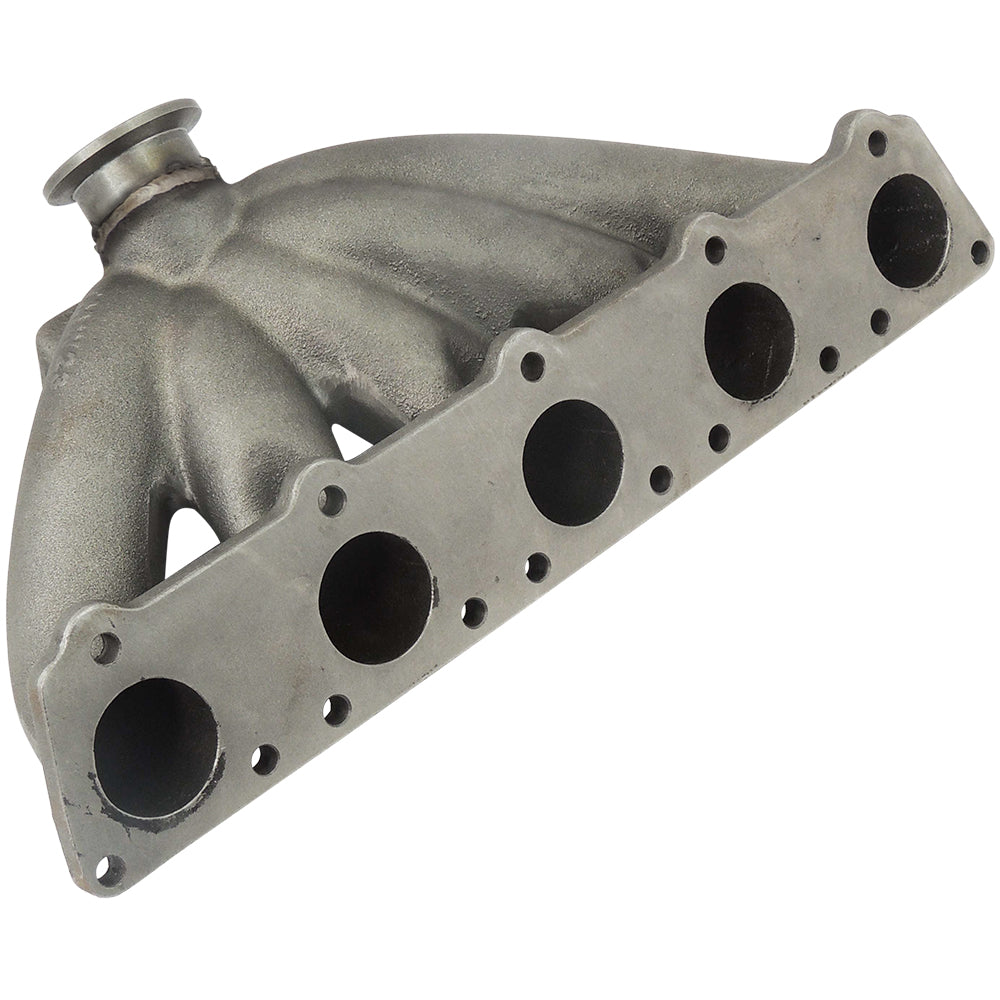

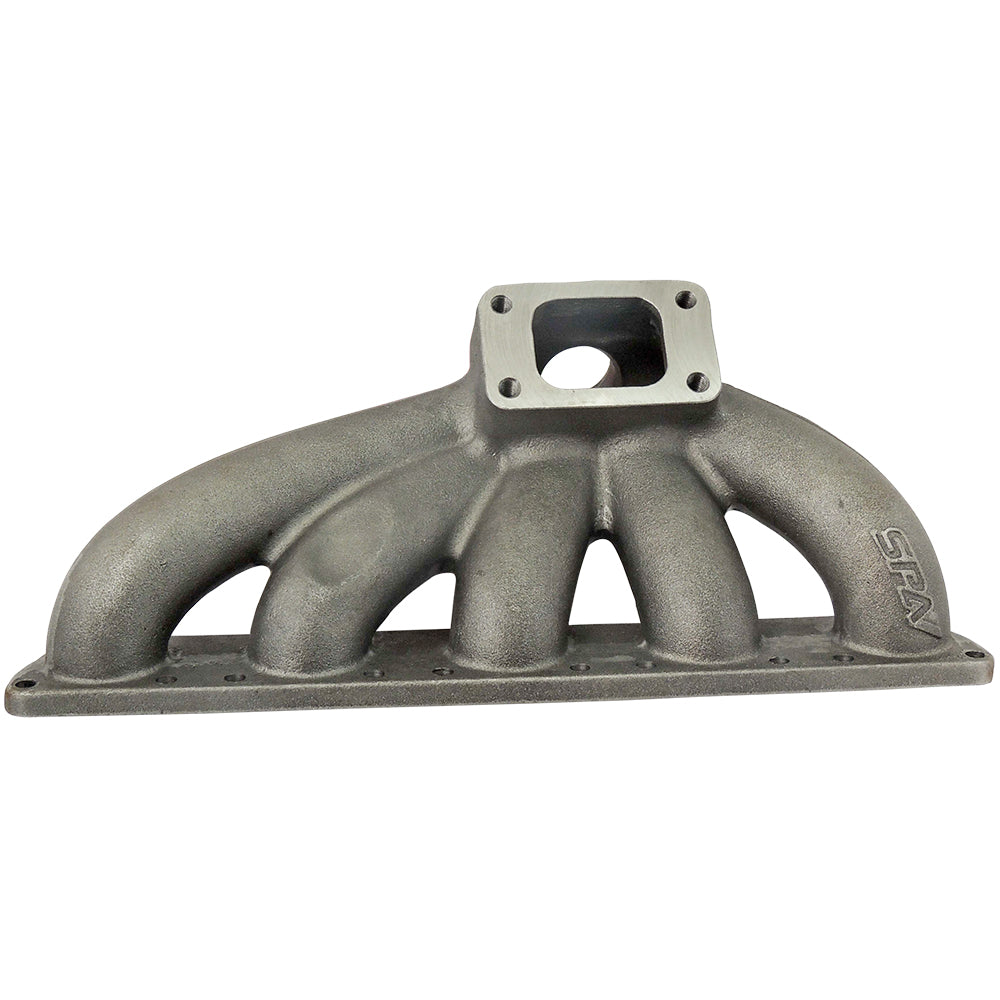

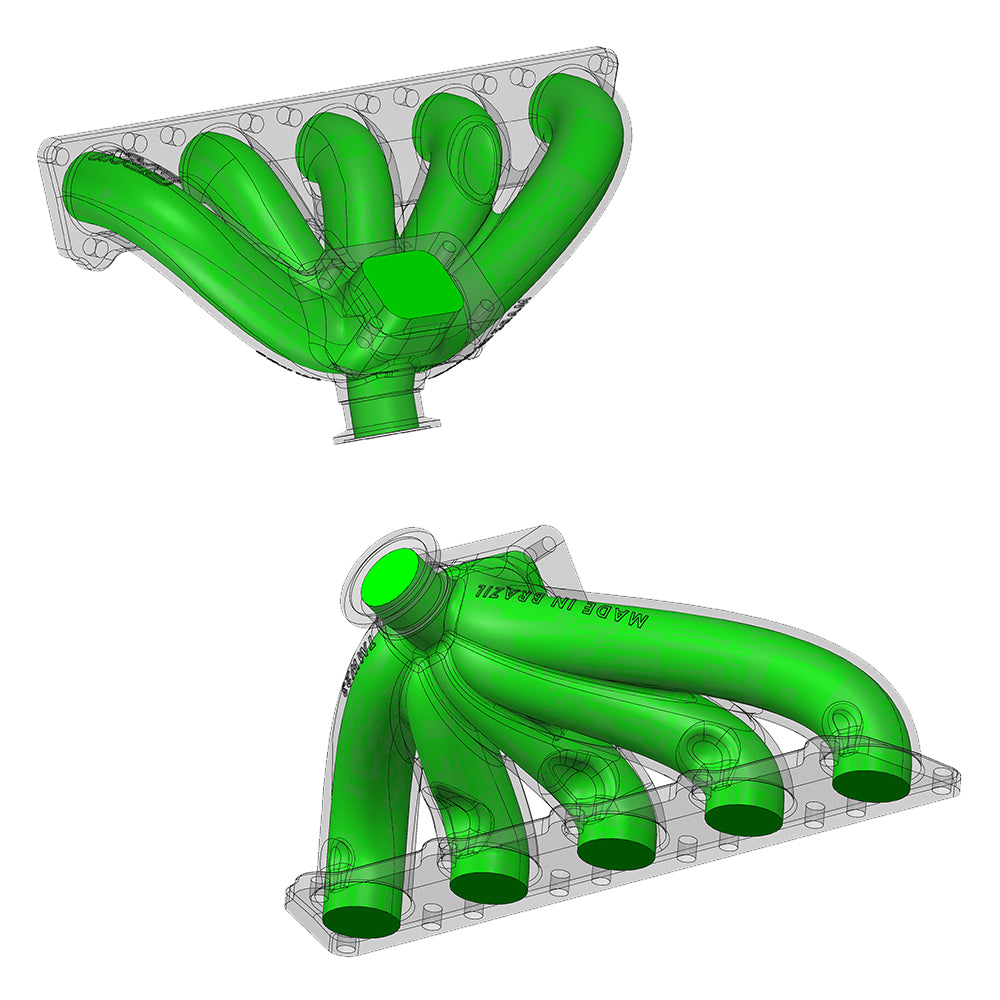

VW Jetta / Golf MK4 2.5L 5 cylinder 20V 07K T3 top mount turbo manifold wastegate V-Band
-
Application: Jetta / Golf MK4 (for other adaptations. consult dimensions and check compatibility with your Project).
-
Turbine position: Top mount
-
Turbine housing flange: Standard T3 (hot housing for right side – passenger)
-
Wastegate flange: V-Band 44mm
-
Runner internal diameter: 41.5mm
-
Material: Cast iron

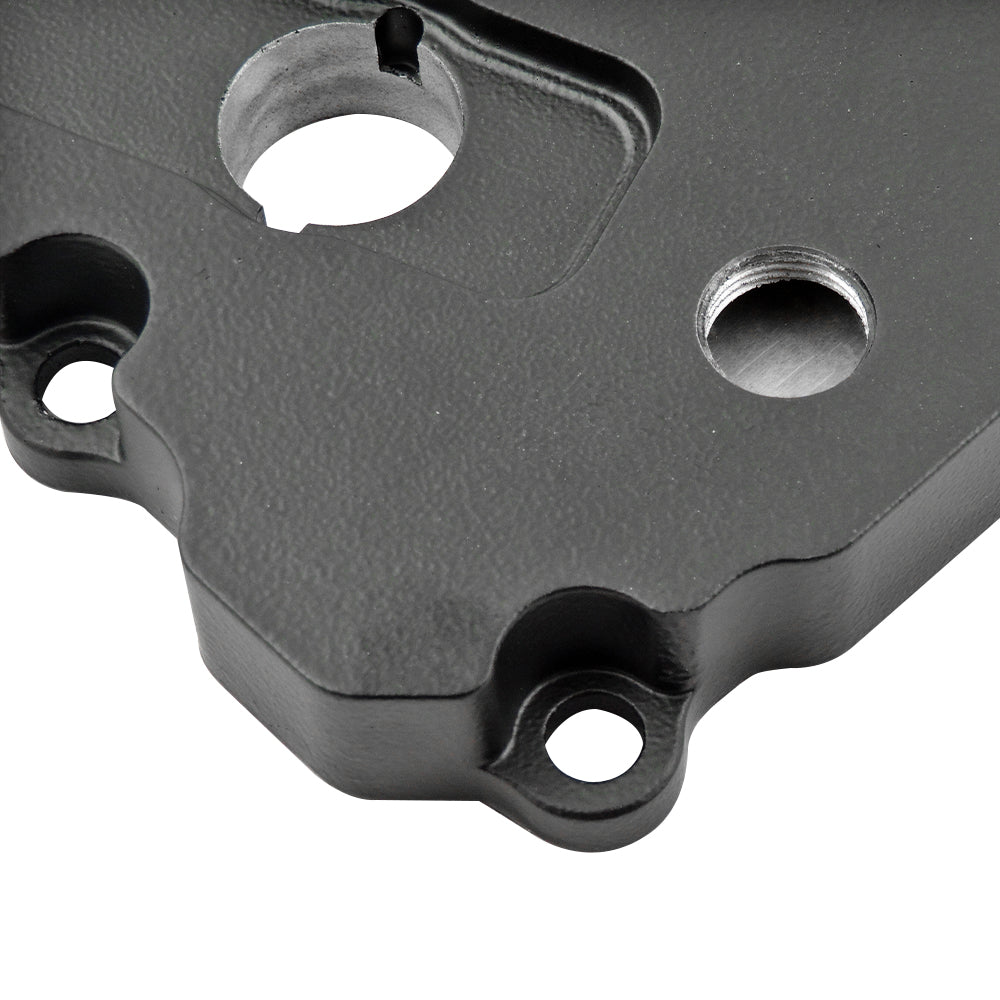

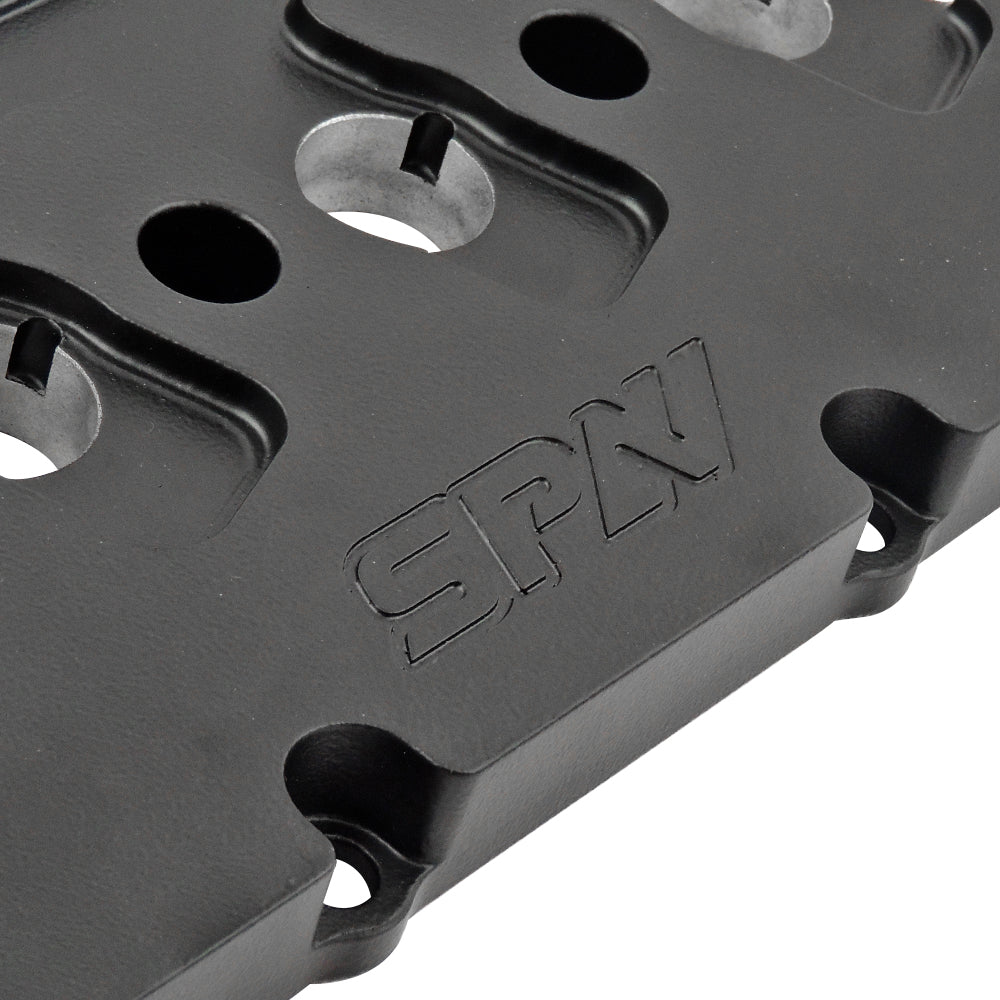

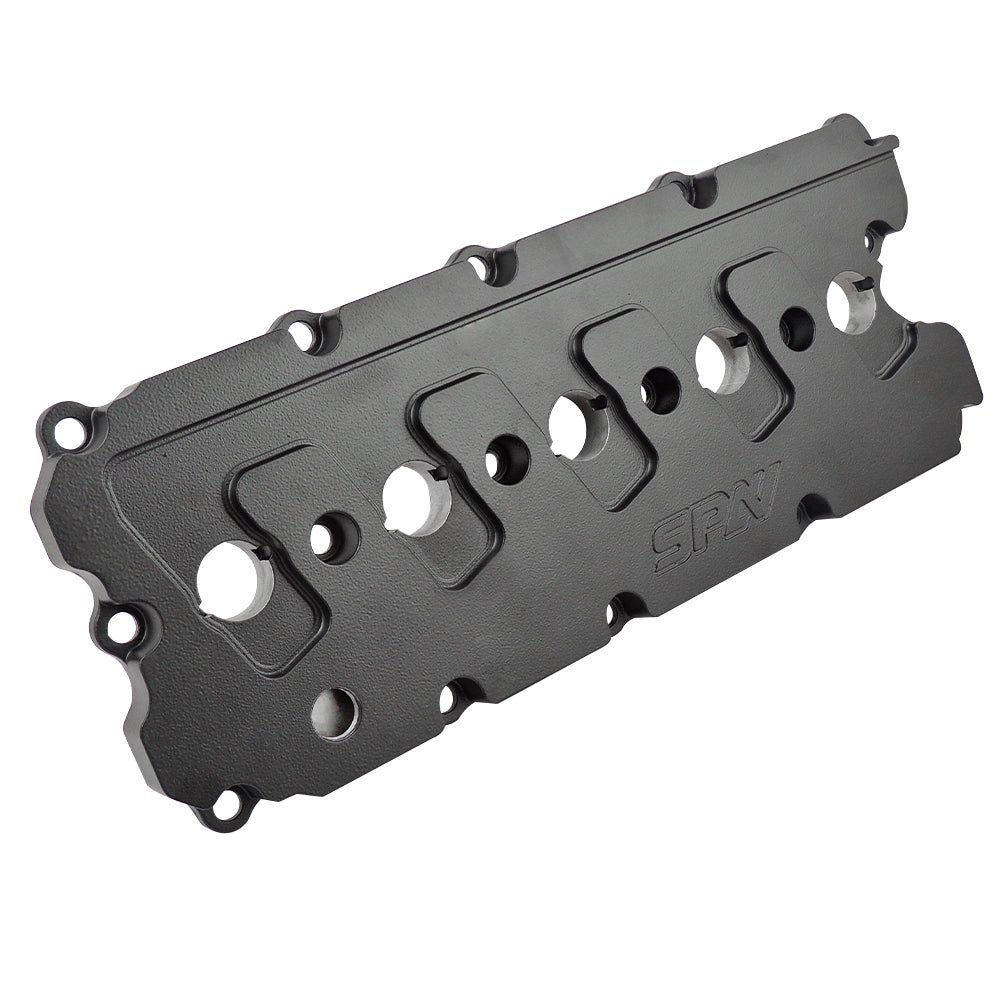

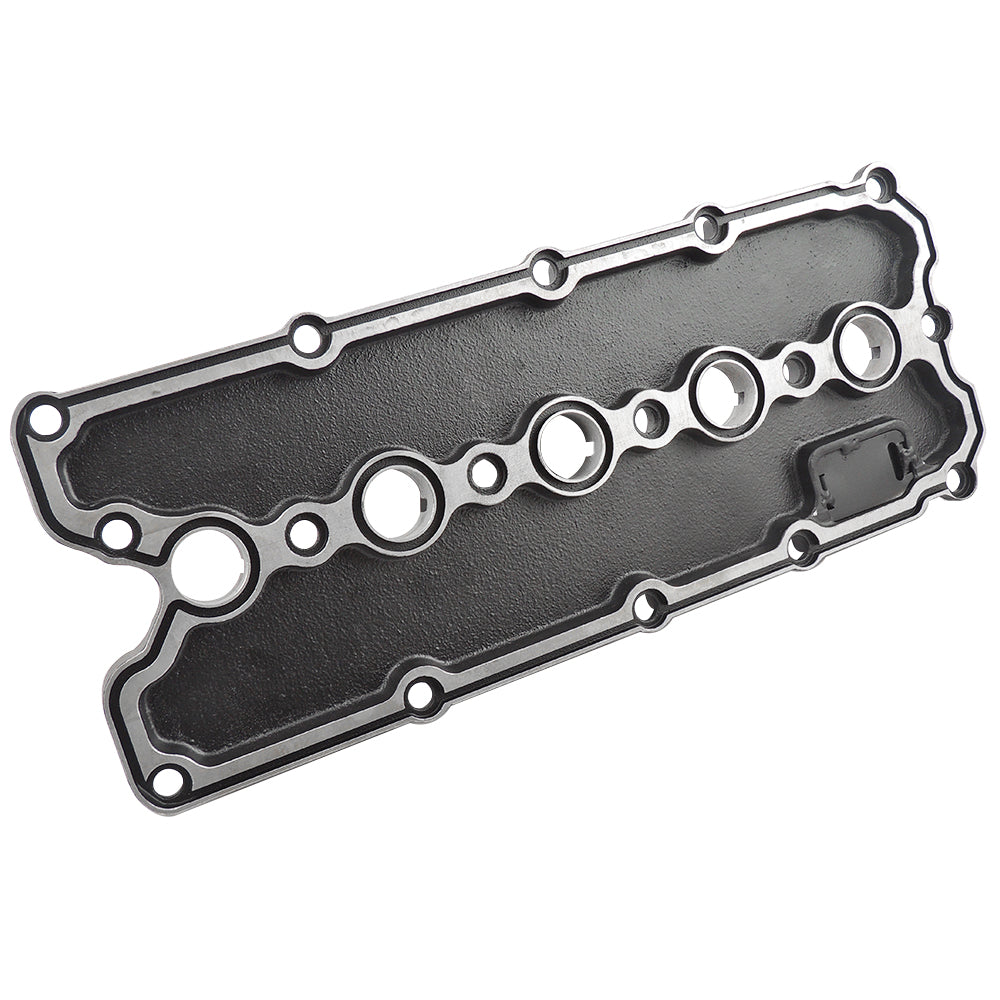

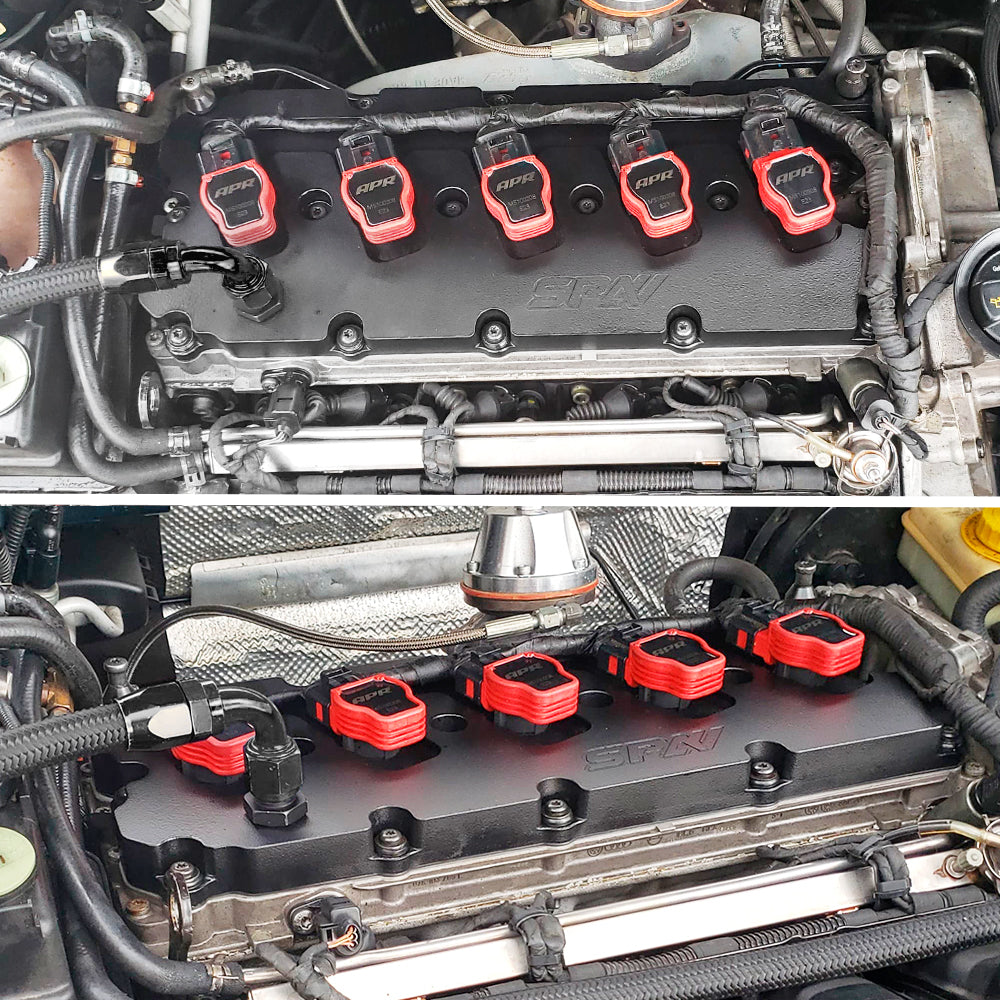

VW 5 cyl 2.5L 20V 07K CAST ALUMINUM VALVE COVER
The valve cover for VW 2.5 5-cylinder engines is the newest release from SPA Performance, designed to be a direct replacement, it’s made of cast aluminum to provide more than enough resistance for any application and it also eliminates the problematic stock breather system (PCV), avoiding headaches and frequent maintenance. It counts with baffles on the outlet to make sure no oil goes to the custom breather system that must be done. All this with a clean and sporty design, with a highly durable black coat finish.
- Application: VW 5 cyl 2.5L 20V FSI (07K)
- Material: Cast aluminum
- Finish: black coat
- Uses stock gasket - 07K 103 483 B (not included)
- Breather outlet: -10AN

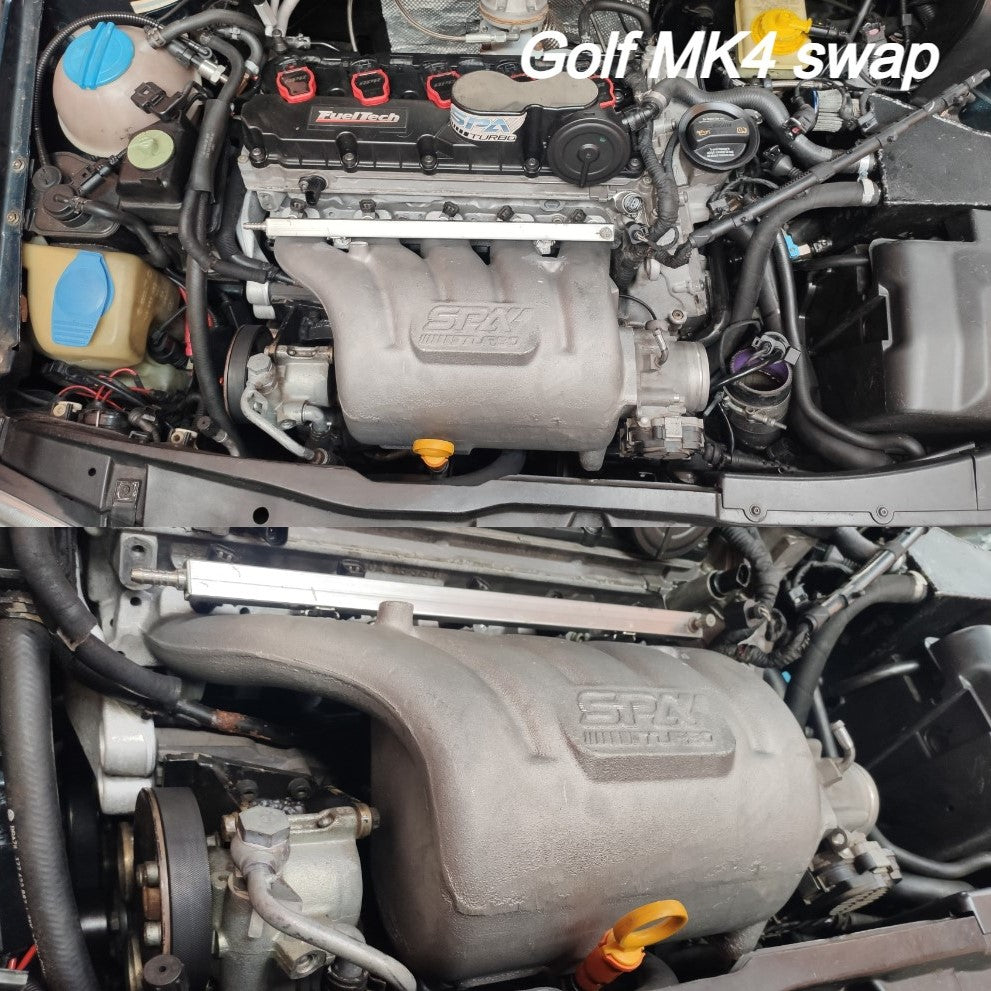

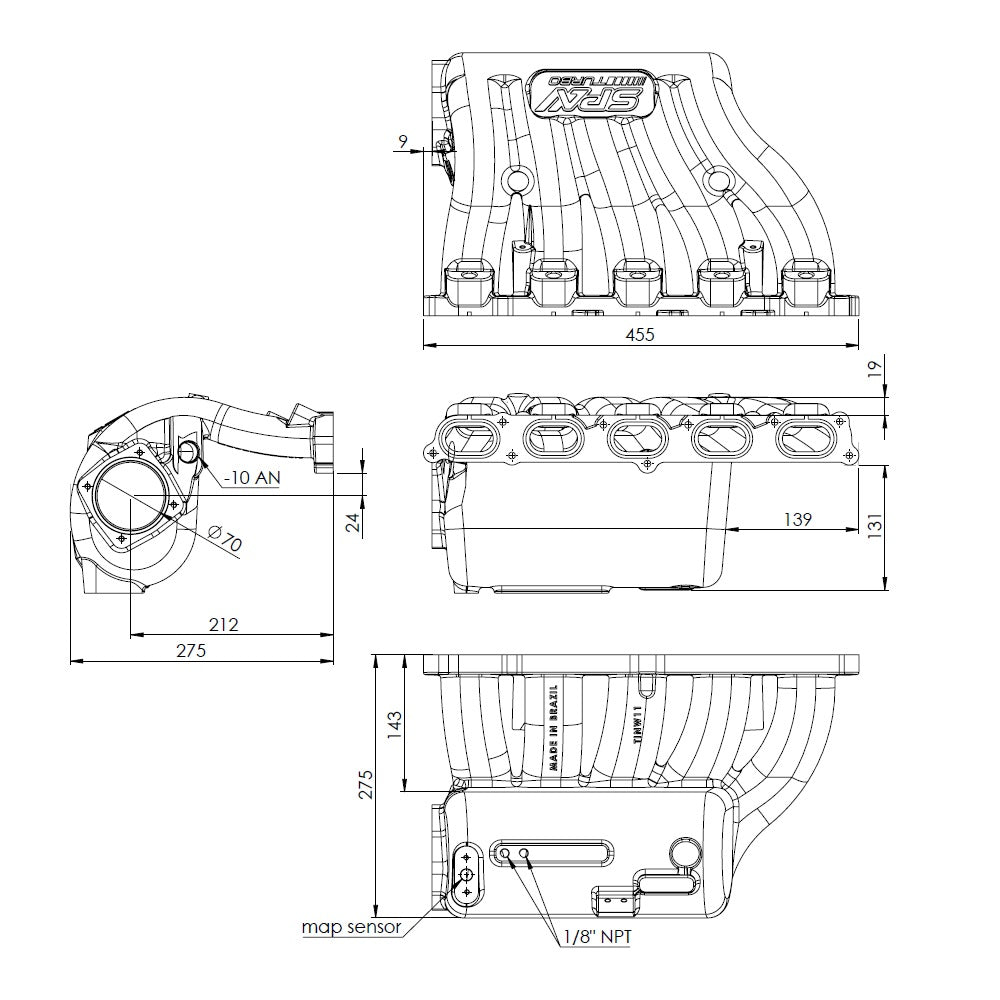

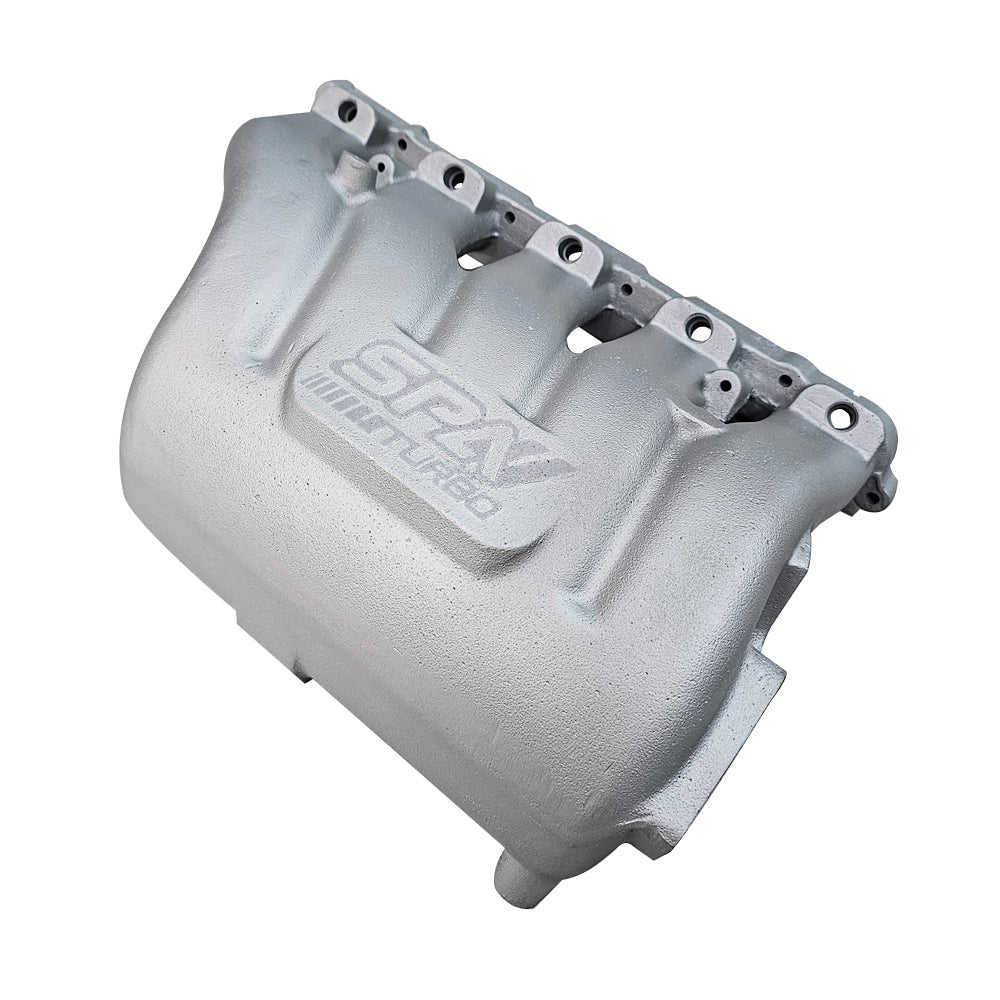

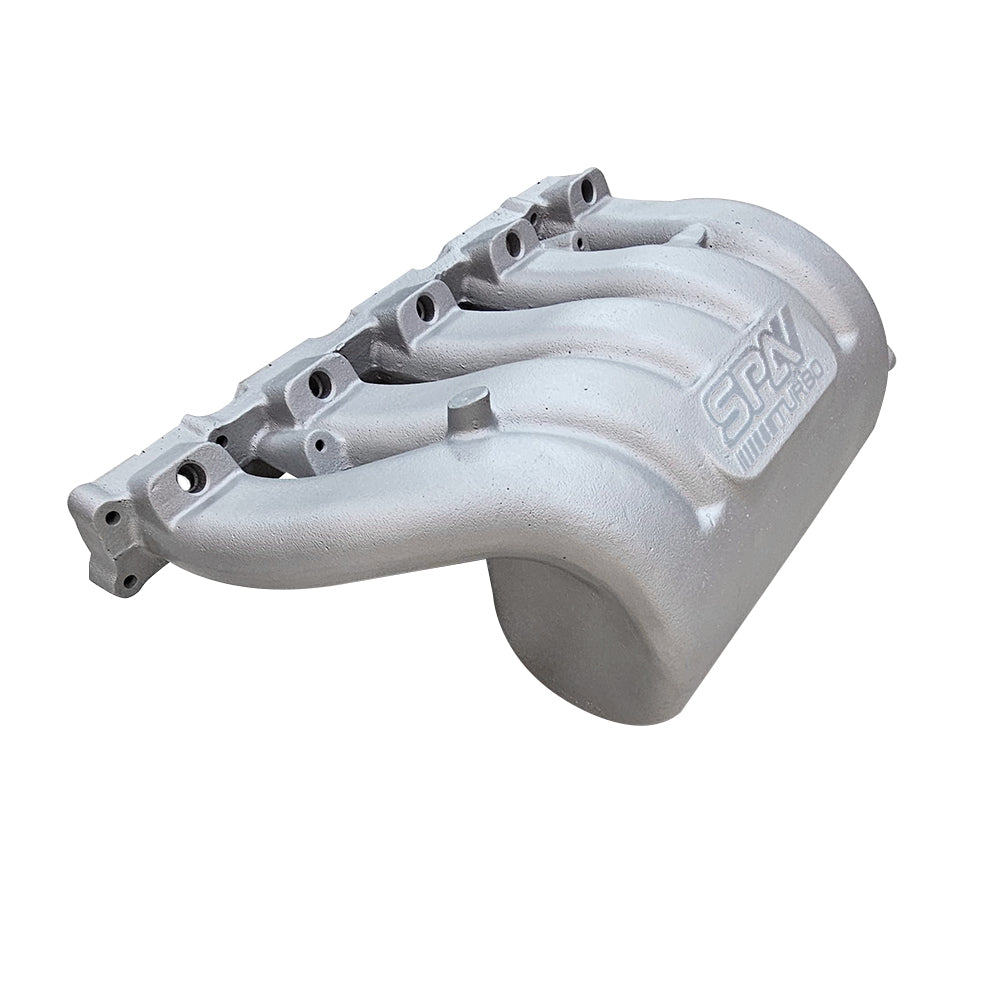

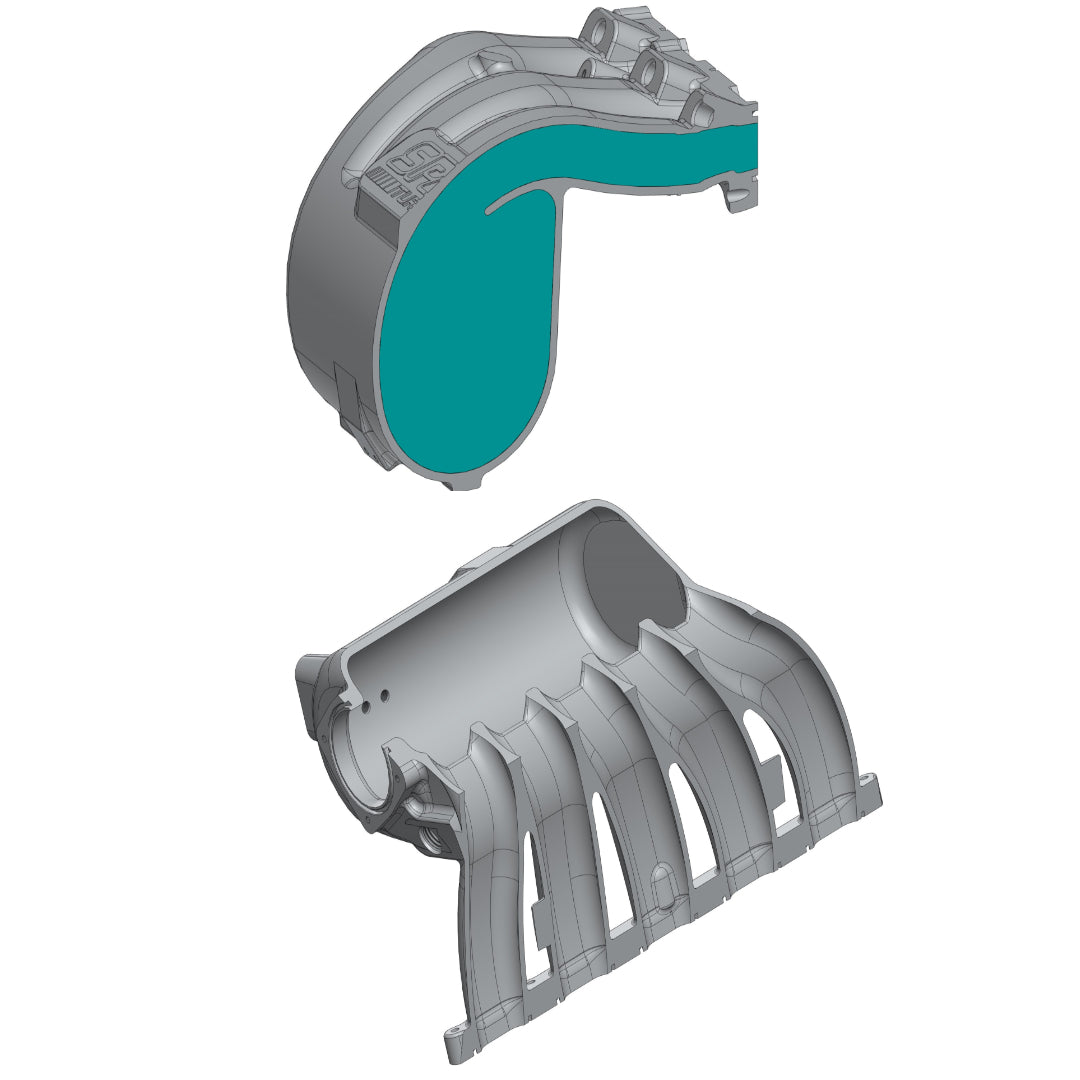

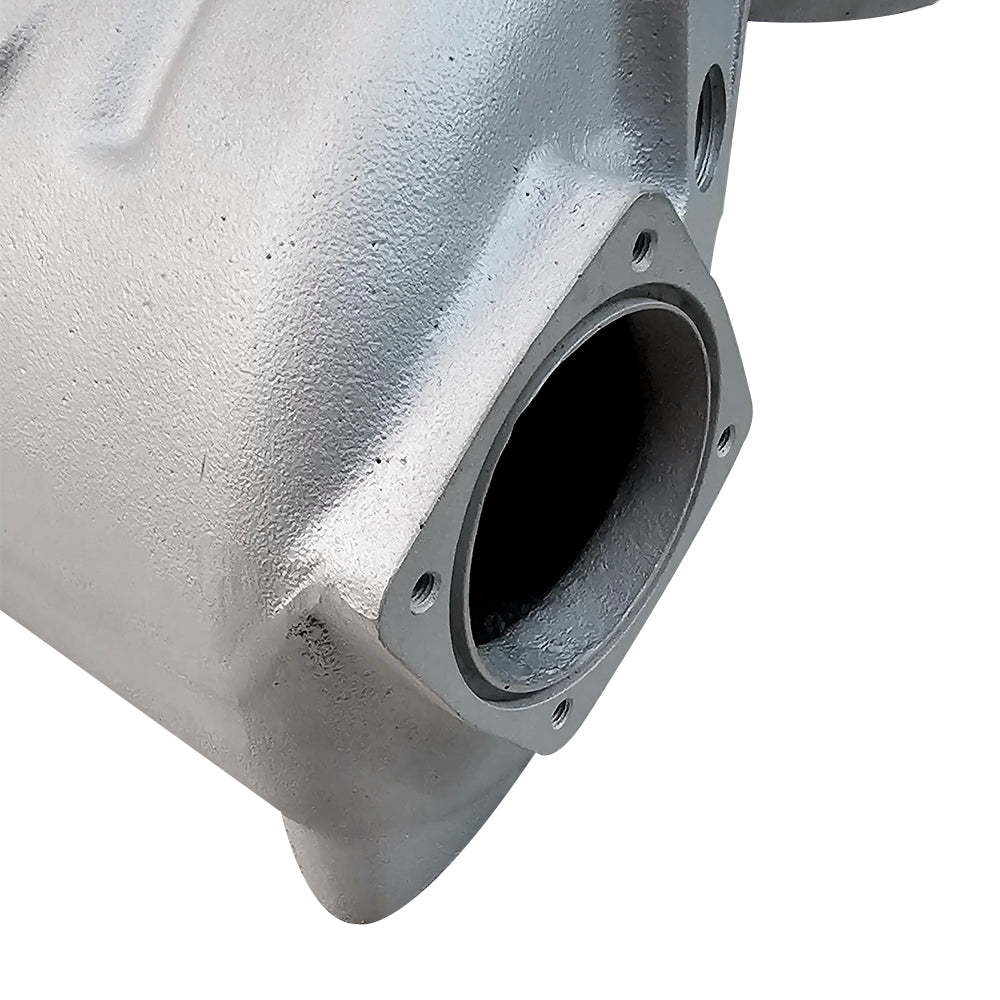

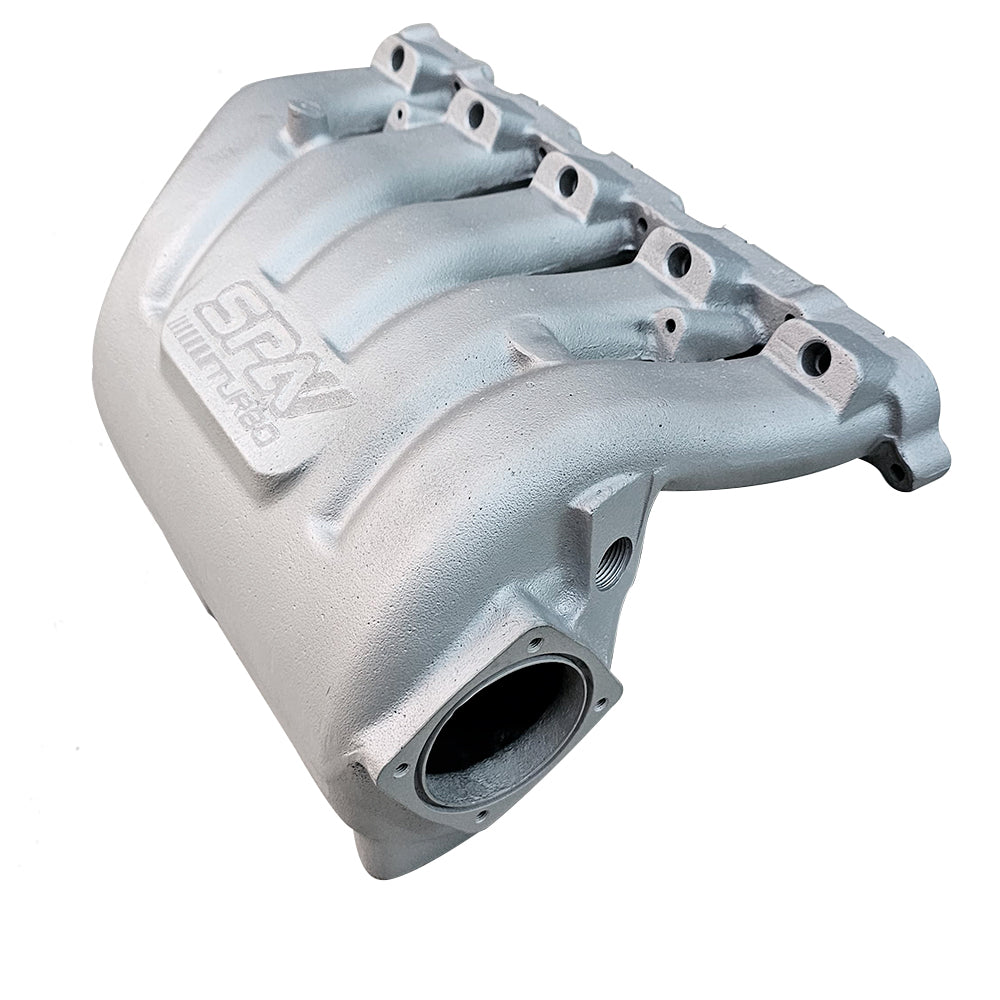

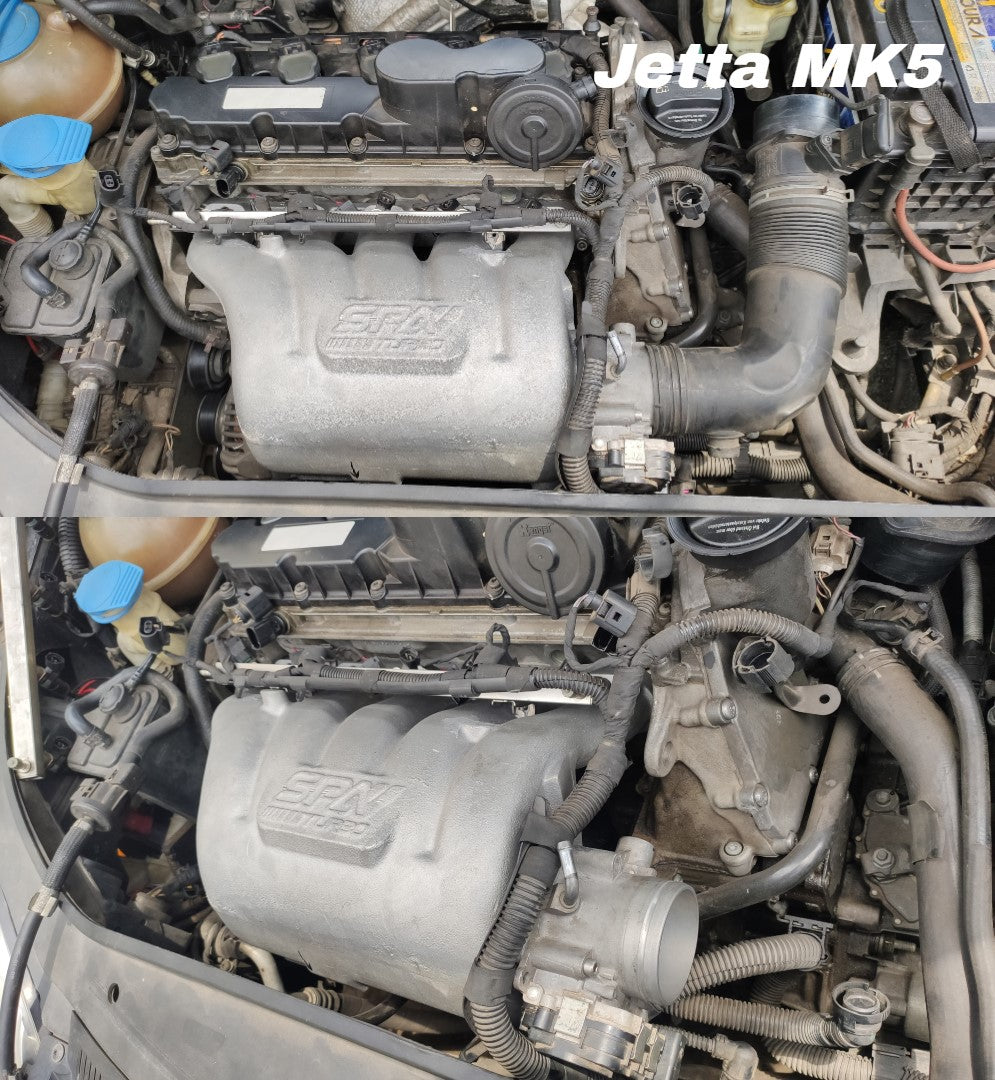

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD
- Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
- Number of injectors: 5
- Fuel rail: Stock
- Fuel rail inlet/outlet: Stock
- Throttle body bolt hole pattern: Stock
- Max working capacity: 10bar (145psi)
- Internal volume: 6,2L
- Material: Cast aluminum
- Compatible with hydraulic and electric steering.
- Includes:
Fitting for stock breather hose (-10AN).
2X 1/8" NPT block off (if vacuum ports are not used).
Oil dipstick holder.
- Compatible with original MAP sensor - ref. 0261230095 (not included).
- Not compatible with the original plastic engine cover.
